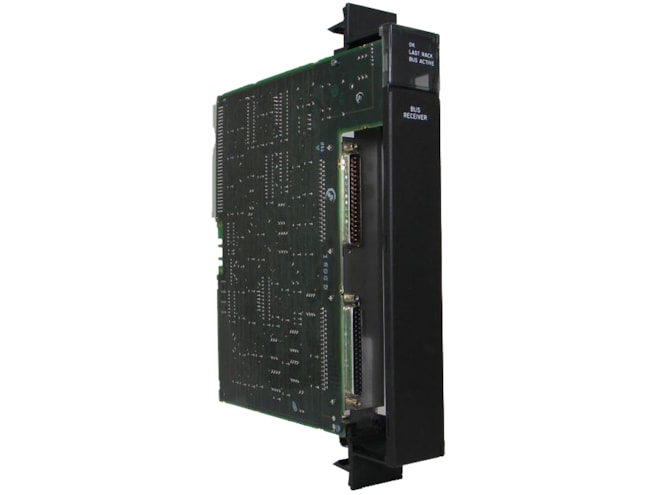

GE-Emerson IC697BEM711 Series 90-70 Bus Receiver Module
Parallel bus expansion interface, supports up to seven Expansion racks.
New Surplus
-
16 in stock
Remanufactured
-
Additional 22 ready to ship within 2-3 days
For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.
- IC697BEM711
- By GE-Emerson
Overview
Features
- Supports Hold Last State
- System Fault Isolation
- Three LED indicators provide module, termination, and bus expansion port status
- No DIP switches to set, software configurable into PLC system
Description
The GE-Emerson IC697BEM711 Series 90-70 Bus Receiver Module permits expansion from the main rack to a maximum of seven additional IC697 PLC racks with up to 50ft (15m) total interconnecting cable. The module occupies a single slot and has two connectors, one for attachment to the upstream or CPU rack and the other for a daisy-chained arrangement to additional expansion racks. The Bus Receiver Module must always be installed in slot 1.
Three green LEDs provide status indication of module status, rack activity status, and presence of the I/O Bus Terminator Plug (IC697ACC702), which is required in the last rack. The Bus Receiver Module supports hold last state operation of the output modules in the event of loss of communications with the CPU. It also permits the isolation and repair of a faulty module within a rack. The module must be configured into the IC697 PLC system using the MS-DOS or Windows programming software configuration function.
