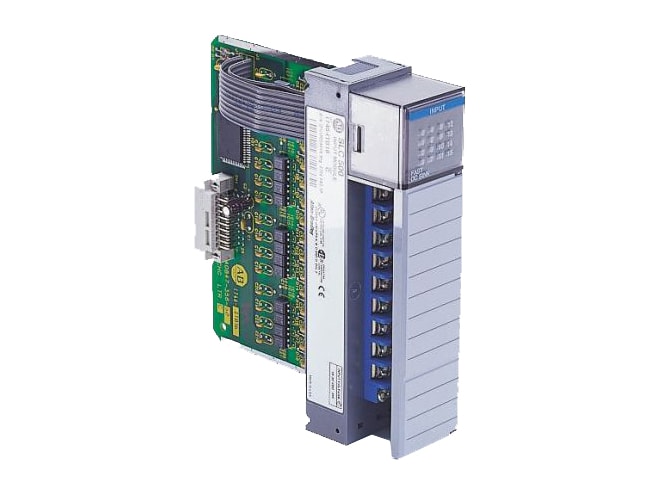

Repair Allen-Bradley 1746-ITB Current Sinking DC Input Module

16 inputs and points per common.

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks

Remanufactured

$150.00
Availability
  • 6 in stock
  • Additional 2 ready to ship within 2-3 days
Part Number
  • 1746-ITB16REP
Manufactured
Product Specs

Features

  • 24VDC voltage category
  • 10 to 30VDC operating voltage range
  • 0mA backplane current at 24V
  • 5VDC maximum off-state input voltage
  • 1.5mA maximum off-state input current
  • 8mA @ 24VDC nominal input current
  • Maximum signal delay:
    • 0.3ms (on)
    • 0.5ms (off)

The Allen-Bradley 1746-ITB Current Sinking DC Input Module is a fast-response module for time-critical applications. Terminals have self-lifting pressure plates that accept two 14 AWG (2mm2) wires. LED indicators on the front of the module display the status of each I/O point. Wiring of 16-channel modules can additionally be accomplished with a bulletin 1492 interface module and pre-wired cable. All 16-channel I/O modules are equipped with color-coded removable terminal blocks. If the input module is connected in parallel with an inductive load, use surge suppression across the load to protect the input module form damage caused by reverse voltage.
