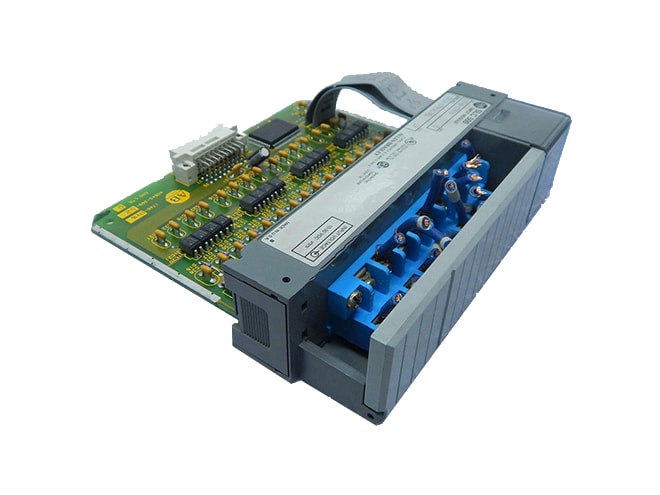

Repair Allen-Bradley 1746-ITV16 DC Sourcing Input Module

16 inputs and points per common.

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks

Remanufactured

$145.00
Availability
  • 4 in stock
  • Additional 4 ready to ship within 2-3 days
Part Number
  • 1746-ITV16REP
Manufactured
Product Specs

Features

  • 24VDC voltage category
  • 10 to 30 VDC operating voltage range
  • Backplane current:
    • 85mA at 5V
    • 0mA at 24V
  • 5VDC off state input voltage
  • 1.5mA off state input current
  • 8mA @ 24VDC nominal input current
  • Maximum signal delay:
    • 0.3ms (on)
    • 0.5ms (off)

The Allen-Bradley 1746-ITV16 DC Sourcing Input Module is a fast response digital module for time-critical applications. The typical signal delay is 0.1ms to signal ON, and 0.25ms to signal OFF at 24VDC. Terminals have self-lifting pressure plates that accept two 14 AWG (2mm2) wires. LED indicators on the front of each module display the status of each I/O point. Wiring can also be accomplished with a bulletin 1492 interface module and pre-wired cable, sold separately.
