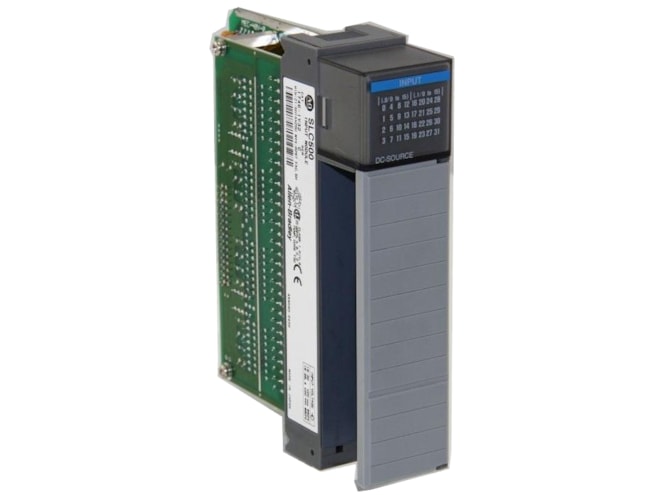

Repair Allen-Bradley 1746-IV32 Current Sourcing DC Input Module

32 inputs, 8 points per common.

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks

Remanufactured

$838.88
Availability
  • 6 in stock
  • Additional 6 ready to ship within 2-3 days
Part Number
  • 1746-IV32REP
Manufactured
Product Specs

Features

  • 24VDC voltage category
  • Operating voltage range:
    • 15 to 30VDC at 122°F
    • 15 to 26.4VDC at 140°F
  • Backplane current:
    • 50mA at 5V
    • 0mA at 24V
  • 5VDC maximum off state input voltage
  • 1.5mA maximum off state input current
  • 5.1mA @24VDC nominal input current
  • Signal delay:
    • 3ms max - ON
    • 3ms max - OFF

The Allen-Bradley 1746-IV32 Current Sourcing DC Input Module is a general purpose module with high density for limited panel space. The module is equipped with a 40-pin, MIL-C-83503 type header and a removable wiring connector (1746-N3). The connector can be assembled with the wire type and length of the user's choice. Wiring can also be accomplished with a bulletin 1492 interface module and pre-wired cable, sold separately.
