Repair Allen-Bradley 1746-OA8 AC Output Module

8 outputs, 4 points per common.

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks

Remanufactured

$480.48
Availability
  • 6 in stock
  • Additional 8 ready to ship within 2-3 days
Part Number
  • 1746-OA8REP
Manufactured
Product Specs

Features

  • 120/240VAC voltage category
  • 85 to 265VAC @ 47 to 63Hz operating voltage range
  • Backplane current:
    • 185mA at 5V
    • 0mA at 24V
  • 1.5V @ 1.0A maximum on-state output voltage drop
  • 2mA maximum off-state output leakage current
  • 10mA minimum load current
  • 10A for 25ms surge current per point
  • Maximum signal delay (resistive load):
    • 1ms ON
    • 11ms OFF
  • Continuous current per point:
    • 1A @ 86°F
    • 0.5A @ 140°F
  • Continuous current per module:
    • 8A @ 86°F
    • 4A @ 140°F

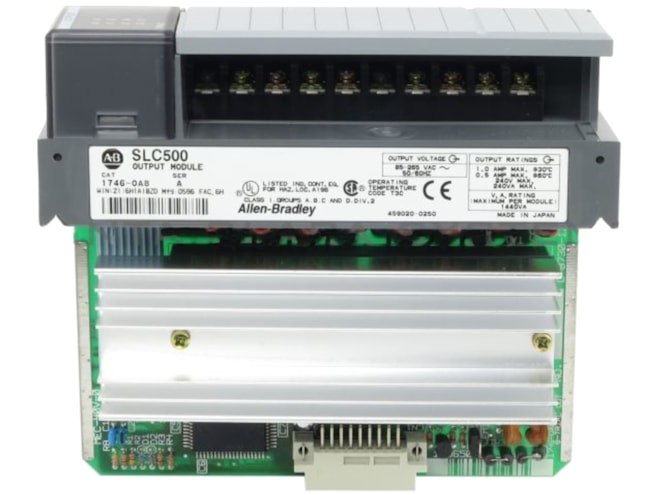

The Allen-Bradley 1746-OA8 AC Output Module is a general purpose 120/240VAC module containing 8 outputs. Terminals have self-lifting pressure plates that accept two 14 AWG (2mm2) wires. LED indicators on the front of each module display the status of each I/O point. Surge current per point repeatability is once every 1s @ 86°F. To limit the effects of leakage current through solid-state outputs, a loading resistor can be connected in parallel with the load. For 120VAC operation, use a 15kΩ, 2W resistor. For 240VAC operation, use a 15kΩ, 5W resistor.
