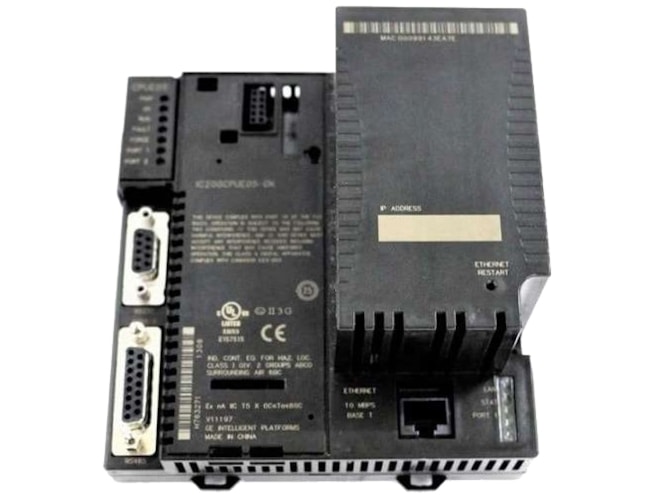

Repair GE-Emerson IC200CPUE05 VersaMax CPU with Ethernet Interface Processor

Supports up to 64 modules with up to 2,048 I/O points.

Repair

$1,344.00
Availability
  • Usually ships in 3-5 business days

Remanufactured

Call for pricing
Availability
  • Additional 1 ready to ship within 2-3 days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC200CPUE05REP
Manufactured
Product Specs

Features

  • System flash, battery-backed RAM program storage
  • Power supply current consumption (no serial port converter or EZ Program Store device):
    • 5V: 220mA
    • 3.3V: 570mA
  • Power supply current consumption (with serial port converter or EZ Program Store device):
    • 5V: 320mA
    • 3.3V: 570mA
  • 0.8ms/K (typical) Boolean execution speed
  • 10Mbps (half- or full-duplex) Ethernet data rate

The GE-Emerson IC200CPUE05 VersaMax CPU with Ethernet Interface Processor can be either autoconfigured or configured from a programmer using configuration software. 64kb of configurable memory is available for the application program, hardware configuration, registers (%R), analog inputs (%AI), and analog outputs (%AQ).  Programming is done in Ladder Diagram and Instruction List, and the processor includes non-volatile flash memory for program storage.

The battery backup covers program, data, and time of day clock, with a supercapacitor that provides power to memory for 1 hour. Over 1 hour, the backup battery protects the memory contents for up to 6 months, and the backup battery has a shelf life of 5 years when not in use.

The processor includes a Run/Stop switch, floating point (real) data functions, and embedded RS-232, RS-485, and Ethernet communications.
