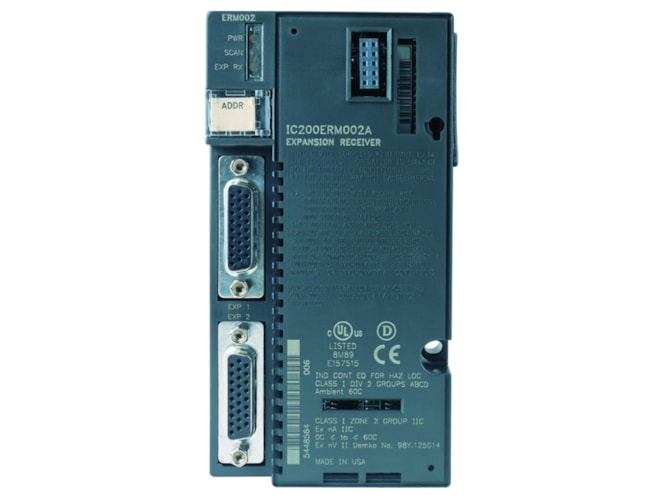

Repair GE-Emerson IC200ERM002 Non-Isolated Expansion Receiver Module

Interfaces an expansion "rack" to a PLC or NIU I/O Station System. .

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days

Remanufactured

$77.28
Availability
  • 3 in stock

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC200ERM002REP
Manufactured
Product Specs

Features

  • PWR LED indicates 5VDC power status
  • EXP RX LED indicates expansion bus comms status
  • SCAN LED indicates whether the CPU/NIU is scanning I/O in expansion racks
  • Backplane current consumption:
    • 5V output: 70mA max.
    • 3.3V output: 20mA

The GE-Emerson IC200ERM002 Non-Isolated Expansion Receiver Module can include up to eight I/O and special-purpose modules. A power supply installed on the module provides operating power for the modules in the rack.

The module may be used without an Expansion Transmitter Module (ETM001) in the PLC or I/O Station if there is only one expansion rack in the system and if the cable length is one meter or less. An Expansion Transmitter Module is required if there are multiple expansion racks or if there is only one expansion rack located farther than 1m from the CPU or NIU.

The Expansion Receiver has two 26-pin female D-shell expansion ports. The upper port receives the incoming expansion cable. In a system that includes an Expansion Transmitter Module, the lower port on the Non-Isolated Expansion Receiver Module is used to daisy-chain the cable to the next expansion rack or to attach the terminator plug at the last rack.
