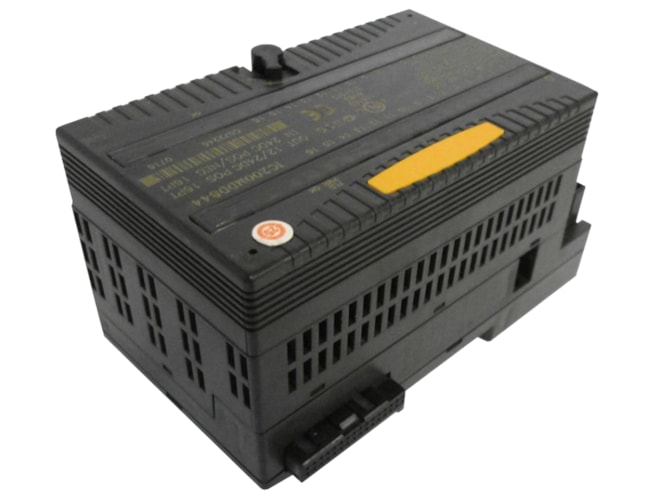

Repair GE-Emerson IC200MDD844 VersaMax Discrete I/O Module

Provides 1 group of 16 discrete outputs and 2 groups of 8 discrete inputs.

Repair

$159.60
Availability
  • Usually ships in 3-5 business days

Remanufactured

$228.00
Availability
  • 13 in stock
  • Additional 14 ready to ship within 2-3 days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC200MDD844REP
Manufactured
Product Specs

Features

  • Isolation:
    • 250VAC continuous; 1,500VAC for 1min user input to logic (optical) and to frame ground
    • 250VAC continuous; 1,500VAC for 1min group-to-group
  • One LED per point shows individual point on/off state
  • FLD PWR LED indicates field power is present
  • OK LED indicates backplane power is present
  • 5V output; 70mA max. backplane current consumption
  • 10.2 to 30VDC, 12/24VDC nominal external power supply
  • Input response time configuration parameters

The GE-Emerson IC200MDD844 VersaMax Discrete I/O Module includes positive or sourcing type outputs. They switch the loads to the positive side of the DC supply and thus supply current to the loads.

Inputs are positive logic; they receive current from input devices and return the current on the common. Input devices are connected between the input terminals and common terminals.

Negative logic input functionality and 12V output functionality require module version -C or higher.

An external DC power supply must be provided to switch power to the loads. Intelligent processing for the module is performed by the CPU or NIU.
