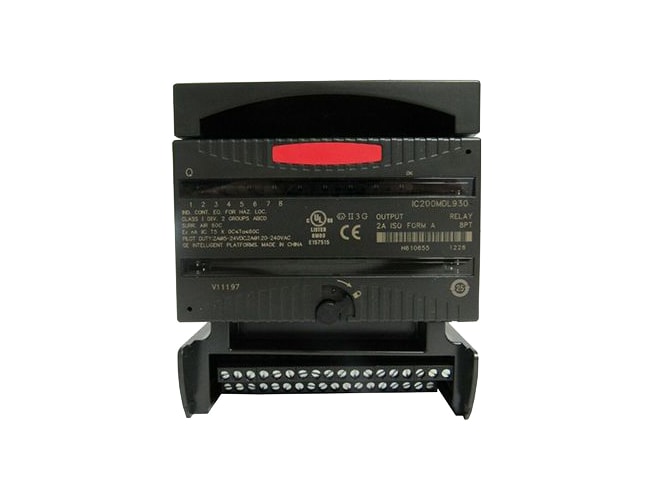

Repair GE-Emerson IC200MDL930 VersaMax Isolated Relay Output Module

Provides 8 individually-isolated Form A relay outputs.

Repair

$54.60
Availability
  • Usually ships in 3-5 business days

Remanufactured

$78.00
Availability
  • 2 in stock
  • Additional 4 ready to ship within 2-3 days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC200MDL930REP
Manufactured
Product Specs

Features

  • Isolation:
    • 250VAC continuous; 1,500VAC for 1min user input to logic (optical) and frame to ground
    • 250VAC continuous; 1,500VAC for 1min point-to-point
  • One green LED per point shows individual point on/off state
  • OK LED indicates backplane power is present
  • External power supply:
    • 0 to 125VDC, 5/24/125VDC nominal
    • 0 to 265VAC (47 to 63Hz), 120/240VAC nominal

The GE-Emerson IC200MDL930 VersaMax Isolated Relay Output Module includes a closed contact when the host CPU is active and the corresponding output logic bit is "1."

Power for module operation comes from the backplane. Loads must be powered by an external source. Intelligent processing for this module is performed by the CPU or NIU.
