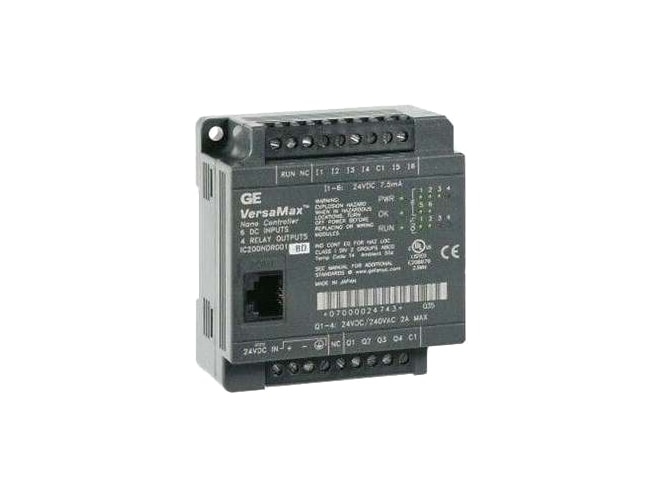

Repair GE-Emerson IC200NDR001 VersaMax Nano 10 Microprocessor

The GE-Emerson IC200NDR001 VersaMax Nano 10 Microprocessor includes four normally-open 2 Amp relay outputs that can regulate 5 to 30VDC or 5 to 250VAC output devices. The configurable DC inputs can be standard inputs or High-Speed Counter inputs. At standard or high-speed, the input can have either logic or negative characteristics. When the inputs are standard, the characteristics are compatible with pushbuttons, limit switches, and electronic proximity switches. The microprocessor has six inputs with an input range of 0 to 30VDC with 24V of rated input voltage. The input threshold voltage is 15VDC minimum.

The microprocessor includes four Form A relay outputs that can regulate devices such as starters, solenoids, and indicators. The 24VDC internal supply offers power for the internal relay coils. For the operation of field devices, an external AC/DC power source is required.
