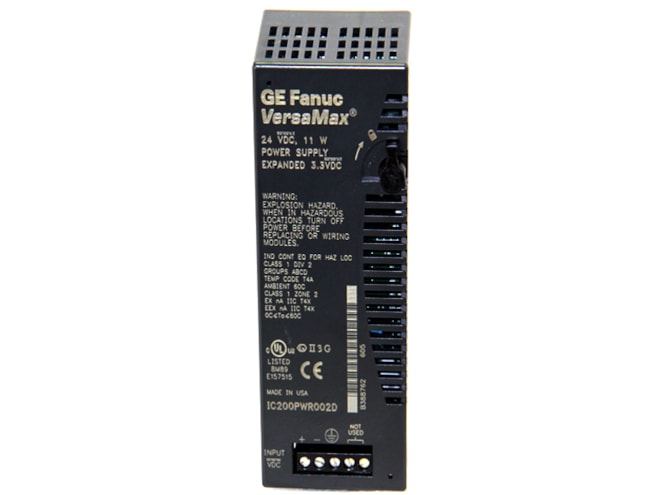

Repair GE-Emerson IC200PWR002 VersaMax 24VDC Expanded 3.3V Power Supply

Provides backplane power for CPU, NIU, and I/O modules.

Repair

Call for pricing
Availability
  • Usually ships in 3-5 business days

Remanufactured

$56.00
Availability
  • 14 in stock
  • Additional 10 ready to ship within 2-3 days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC200PWR002REP
Manufactured
Product Specs

Features

  • 18 to 30VDC, 24VDC nominal input voltage
  • 11W input power
  • 10ms holdup time
  • Inrush current:
    • 20 Amps at 24VDC
    • 25 Amps at 30VDC
  • Output voltage:
    • 5VDC
    • 3.3VDC
  • Short circuit, overload, and reverse polarity protection
  • Output current:
    • Total: 1.5 Amp max.
    • 3.3VDC output: 1.0 Amp max.
    • 5VDC output: (1.5A - l3.3V) max.

The GE-Emerson IC200PWR002 VersaMax 24VDC Expanded 3.3V Power Supply provides up to 1.15 Amps output current via 3.3V and 5V outputs, with up to 1.0 Amp on the 3.3V output. When mounted on the CPU or NIU module, it serves as the main power supply for the station. It can also be used as a supplemental power supply when mounted on a Power Supply Booster Carrier.
