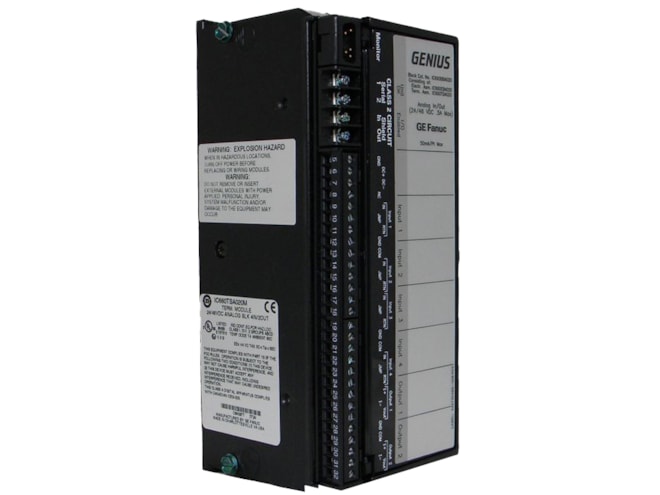

Repair GE-Emerson IC660BBA020 Genius Analog I/O Block

24/48 VDC, provides 4 inputs and 2 outputs.

Repair

$243.60
Availability
  • Usually ships in 3-5 business days

Remanufactured

$348.00
Availability
  • 19 in stock
  • Additional 19 ready to ship within 2-3 days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC660BBA020REP
Manufactured
Product Specs

Features

  • Can accept or provide signals in one of five analog ranges:
    • 0 to 10VDC
    • -10 to 10VDC
    • -5 to 5VDC
    • 0 to 5VDC
    • 4 to 20mA / 1 to 5VDC
  • Unit OK, I/O Enabled LEDs (I/O Block)
  • 1,500V block to block isolation
  • 6W heat dissipation
  • Block power:
    • 18 to 56 VDC operating range
    • 8W maximum power
    • 10% max. ripple
    • 10ms power supply dropout time

The GE-Emerson IC660BBA020 Genius Analog I/O Block is designed for use with a wide variety of analog input and output devices. The block's internal power supply drives current mode output loads up to 300 Ohms each. For loads up to 2K Ohms, an external 24 or 48VDC power supply can be used.

Configurable block features include:

  • Independent scaling for each input and output
  • Fault reports to the host can be enabled or disabled for each input and output
  • Selectable Input Filter Time up to 1024ms
  • Each input can operate in normal analog input mode, or report only its alarm status
  • Low and high alarm limits for each input, in either normal input mode or alarm input mode
  • Powerup default values for each output
  • Each output can be configured to hold last state or default if CPU communications are lost
  • Input Low Alarm and High Alarm detection
  • Open Wire detection on current mode inputs
  • Input Underrange or Overrange
  • Output Underrange or Overrange
