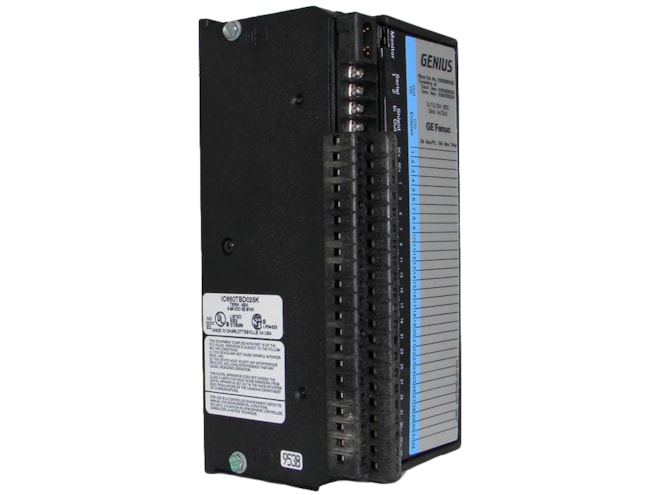

Repair GE-Emerson IC660BBD022 Genius Source I/O Block

24 VDC; provides 16 discrete circuits, each configurable as an input, tristate input, or output.

Repair

$381.50
Availability
  • Usually ships in 3-5 business days

Remanufactured

$545.00
Availability
  • 26 in stock
  • Additional 116 ready to ship within 2-3 days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC660BBD022REP
Manufactured
Product Specs

Features

  • For use with 2-wire and 3-wire solid state sensors and electromechanical sensors
  • Unit OK, I/O Enabled LEDs (I/O Block)
  • Individual load side indicator LEDs (each circuit)
  • 1,500V block to block isolation
  • Heat dissipation: 68.8W with 16 outputs on at 2A
  • 18 to 30VDC operating voltage (one source)
  • 10% max. ripple
  • 150mA typical/300mA max. required DC power
  • 10ms power supply dropout time

The GE-Emerson IC660BBD022 Genius Source I/O Block is a configurable block that can interface with a wide range of discrete DC sensors and actuators. Output circuits can be connected directly to input circuits without the use of other components or inversion of logic states.

Control power is tapped off the input/output device voltages wired to the terminals. No separate block power supply is needed.

Configurable features include:

  • Output Pulse Test capability
  • Selectable Input Filter Time from 10ms to 100ms
  • Output powerup defaults
  • Output Hold Last State or default

The block’s advanced diagnostics can pinpoint the causes of installation and run-time errors. Diagnostics features of these blocks include:

  • Electronic short circuit protection
  • Overtemperature protection
  • Failed switch detection
  • Open wire detection for tristate inputs
  • Overload detection and shutdown
  • No-load detection
