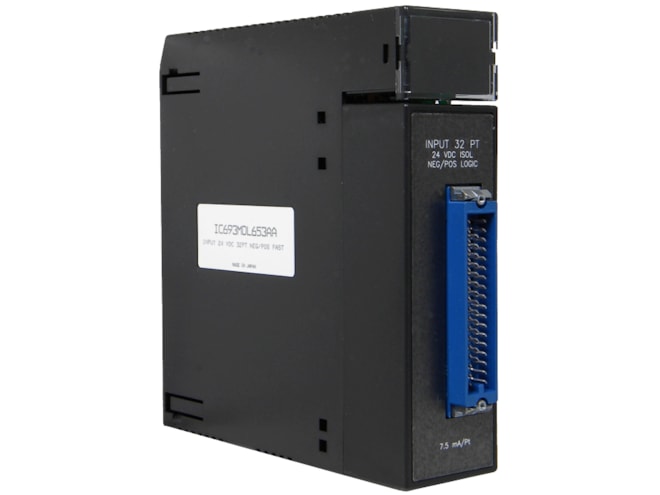

Repair GE-Emerson IC693MDL653 24 Volt DC Positive/Negative Logic Input Module

Provides 32 input points in 4 isolated groups with 8 points in each group.

Repair

$201.60
Availability
  • Usually ships in 3-5 business days

Remanufactured

$288.00
Availability
  • 9 in stock
  • Additional 13 ready to ship within 2-3 days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC693MDL653REP
Manufactured
Product Specs

Features

  • 24VDC rated voltage
  • 24VDC input voltage range (+10%, -20%)
  • 1,500V isolation between field side and logic side
  • 7.5mA average input current at rated voltage
  • Input characteristics:
    • 15VDC minimum on-state voltage
    • 6VDC max. off-state voltage
    • 4.5mA minimum on-state current
    • 2mA max. off-state current
    • 2ms max. On and Off response time
  • 5mA (16 inputs on) internal power consumption from 5V bus on the backplane

The GE-Emerson IC693MDL653 24 Volt DC Positive/Negative Logic Input Module includes two common pins associated with each of its four groups, which are tied together internally. The On and Off response times are 2ms maximum. When connected for positive logic, it sinks current from the input device to the user common or negative power bus. The input device is connected between the positive power bus and the circuit input. When connected for negative logic, it sources current through the input device to the user common or positive power bus. The input device is connected between the negative power bus and the circuit input. Current into an input point results in a logic 1 in the input status table (%I).

Input characteristics are compatible with a wide range of input devices, such as pushbuttons, limit switches, and electronic proximity switches. Power to operate field devices must be supplied by the user.

Connections to the input circuits are made from the user’s input devices to a 50-pin connector mounted on the front of the module. Prewired cables having a mating connector on one end and the wires on the opposite end terminated with terminal lugs are available from GE Fanuc.

The module does not have LED indicators to indicate circuit status. The module can be installed in any I/O slot of a 5 or 10-slot baseplate in a Series 90-30 PLC system.
