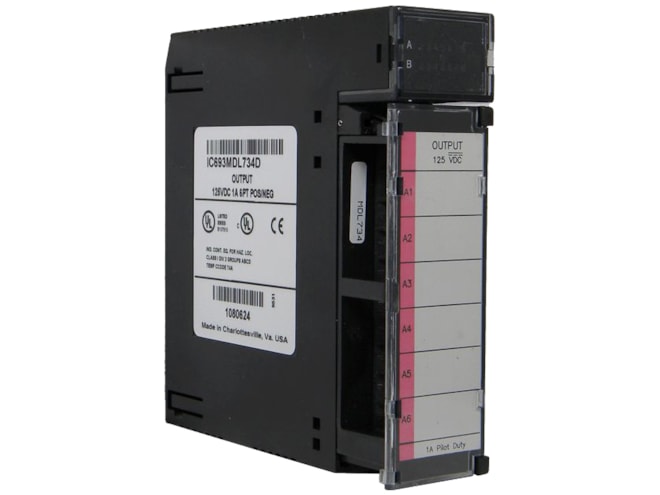

Repair GE-Emerson IC693MDL734 125VDC Positive/Negative Logic 1A Output Module

The GE-Emerson IC693MDL734 125VDC Positive/Negative Logic 1A Output Module either sources current to the loads from the user common or positive power bus, or sinks current from the loads to the user common or negative power bus. The output characteristics are compatible with a wide range of user-supplied load devices, such as motor starters, solenoids, and indicators. Power to operate the field devices must be supplied by the user.

LED indicators that provide each point's ON/OFF status are located at the top of the module. This LED block has two horizontal rows with eight green LEDs in each row. The module uses the first six LEDs in the top row, labeled A1 through 6 (points 1 through  6) for output status. An insert goes between the inside and outside surfaces of the hinged door. The surface towards the inside of the module (when the hinged door is closed) has circuit wiring information, and circuit identification information can be recorded on the outside surface. The outside left edge of the insert is color-coded red to indicate a high-voltage module. External fusing is recommended. Two amp loads can be driven by wiring and driving two outputs in parallel.

The module can be installed in any I/O slot of a 5 or 10-slot baseplate in a Series 90-30 PLC system.
