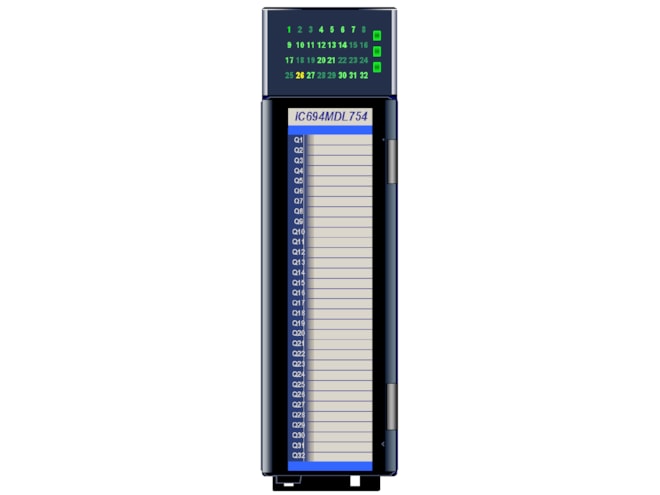

Repair GE-Emerson IC693MDL754 24VDC ESCP Output Module

Provides 32 output points in two isolated groups of 16 outputs each.

Repair

$110.60
Availability
  • Usually ships in 3-5 business days

Remanufactured

$158.00
Availability
  • 1 in stock
  • Additional 1 ready to ship within 2-3 days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC693MDL754REP
Manufactured

Features

  • 12/24VDC rated voltage, nominal
  • 10.2 to 30VDC output voltage range
  • Isolation:
    • 1,500VAC for 1min field to backplane
    • 250VAC continuous group to group
  • 0.75 Amps per point output current
  • 300mA max. power consumption from 5V bus on backplane
  • 12 to 30VDC external power supply, 12/24VDC nominal

The GE-Emerson IC693MDL754 24VDC ESCP Output Module uses Electronic Short Circuit Protection technology that enables the user to protect the module from external short circuits without the need for external fuses. The ESCP detects a short and opens the circuit protecting the module. When the short in the field device or wiring is corrected the circuit self-heals. The module provides point-level diagnostics (not reported back to the CPU) and when there is a short the output LED will go amber for a visual indication.
