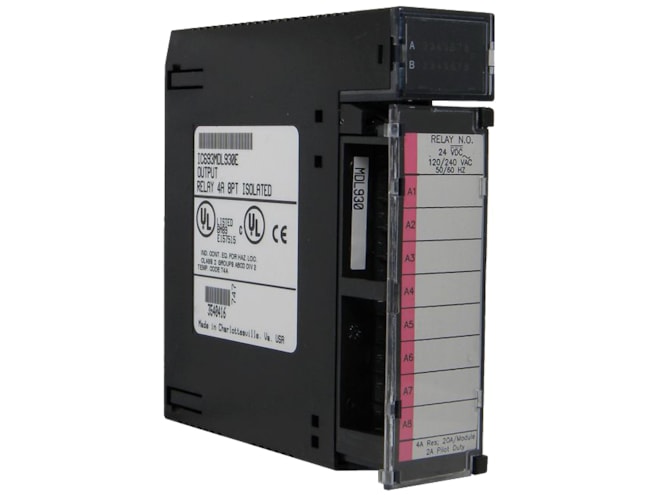

Repair GE-Emerson IC693MDL930 4 Amp Isolated Relay Output Module

Provides 8 normally-open relay circuits for controlling output loads provided by the user.

Repair

$224.00
Availability
  • Usually ships in 3-5 business days

Remanufactured

$280.00
Availability
  • 7 in stock
  • Additional 41 ready to ship within 2-3 days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC693MDL930REP
Manufactured
Product Specs

Features

  • 24VDC, 12/240VAC rated voltage, nominal
  • Operating voltage:
    • 5 to 30VDC
    • 5 to 250VAC, 50/60Hz
  • Isolation:
    • 1,500V between field side and logic side
    • 500V between groups
  • Maximum load:
    • 4 Amps resistive max. per output
    • 2 Amps pilot duty per output
    • 20 Amps max. per module for UL installations
  • 10mA minimum load
  • 5 Amps max. inrush
  • 15ms max. On and Off response time
  • Internal power consumption:
    • 6mA (all outputs on) from 5V bus on backplane
    • 70mA (all outputs on) from relay 24V on backplane

The GE-Emerson IC693MDL930 4 Amp Isolated Relay Output Module is capable of controlling a wide range of user-supplied load devices such as motor starters, solenoids, and indicators. The user must supply the AC or DC power to operate the field devices connected to this module. There are no fuses on the module.

LED indicators that provide each point's ON/OFF status are located at the top of the module. The LEDs are arranged in two horizontal rows with eight green LEDs in each row. This module uses the top row labeled A1 through 8 (points 1 through 8); the bottom row is not used. An insert goes between the inside and outside surfaces of the hinged door. The surface towards the inside of the module (when the hinged door is closed) has circuit wiring information, and circuit identification information can be recorded on the outside surface. The outside left edge of the insert is color-coded red to indicate a high-voltage module. The module can be installed in any I/O slot of a 5 or 10-slot baseplate in a Series 90-30 PLC system.
