Repair GE-Emerson IC693NIU004 Ethernet Remote Input and Output Interface

RAM and Flash type memory storage.

Repair

$3,198.40
Availability
  • Usually ships in 3-5 business days

Remanufactured

Call for pricing
Availability
  • Out of Stock

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC693NIU004REP
Manufactured
Product Specs

Features

  • 2,048 (fixed) discrete input points - %I
  • 2,048 (fixed) discrete output points - %Q
  • 4,096 (fixed) internal coils reserved for system use - %M
  • 256 bits (fixed) temporary output coils reserved for system use - %T
  • 9,999 register memory reserved for system use - %R
  • 1,268 analog inputs - %AI
  • 512 analog outputs - %AQ
  • Battery backup (number of months with no power):
    • 1.2mo for internal battery (installed in the power supply)
    • 15mo with eternal battery (IC693ACC302)
  • 7.4W of 5VDC load required from power supply; high capacity power supplies required
  • 8 baseplates per system (CPU + 7 expansion and/or remote)
  • Supports RS-485 port on power supply
  • SNP and SNPX protocol support on power supply RS-485 port

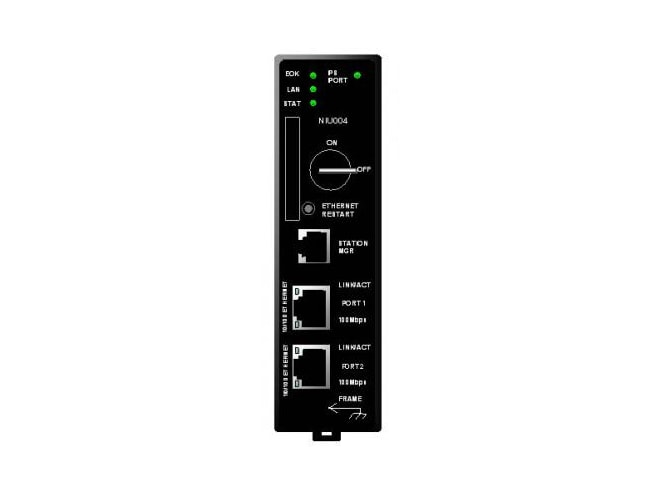

The GE-Emerson IC693NIU004 Ethernet Remote Input and Output Interface operates as an EGD (Ethernet Global Data) station, exchanging input, output, status, and control data over a network. The unit is supplied with 8 LEDs, an Ethernet restart push button, 3 port connectors, and a shield ground connection tab. The MAC address label is located on the outside of the module.
