Repair GE-Emerson IC697CMM742 Series 90-70 Ethernet Interface Module

Connects IC697 PLC to an IEEE 802.3 CSMA/CD 10Mbps Ethernet LAN via one of three network ports: 10BaseT, 10Base2 or AUI.

Repair

$580.00
Availability
  • Usually ships in 3-5 business days

Remanufactured

$725.00
Availability
  • 1 in stock
  • Additional 10 ready to ship within 2-3 days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC697CMM742REP
Manufactured
Product Specs

Features

  • 10BaseT and 10Base2 network ports provide direct connection to 10BaseT or 10Base2 network without an external transceiver
  • Standard 15-pin AUI network port allows choice of 10Base5, 10Base2, 10BaseT, 10BaseF, or 10Broad 36 medium with user-supplied 802.3-compatible transceiver
  • Firmware is pre-loaded for easy installation and is maintained indefinitely; firmware is easily upgraded in-system from PC attached to RS-485 serial port
  • Provides:
    • Data exchange using configuration-based and logic-based Ethernet Global Data
    • TCP/IP communication services using SRTP
    • Full PLC programming and configuration services
    • Comprehensive station management and diagnostic tools

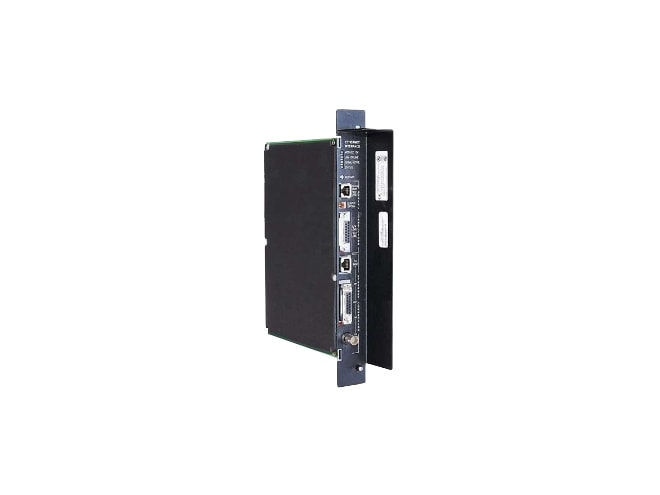

The GE-Emerson IC697CMM742 Series 90-70 Ethernet Interface Module provides TCP/IP communications for the IC697 PLC.

The module plugs into a single slot in an IC697 PLC rack and is configured with the IC641 PLC programming software. Up to four such modules can be installed in an IC697 PLC CPU rack.

The module contains three network ports: 10BaseT (RJ-45 connector), 10Base2 (BNC connector), and AUI (15-pin D-connector). The Ethernet Interface automatically selects the network port in use. One network port may be used at a time.

The 10BaseT network port permits direct connection to a 10BaseT (twisted pair) network hub or repeater without an external transceiver.

The 10Base2 network port permits direct connection to a 10Base2 (ThinWire) network without an external transceiver.

The AUI network port permits attachment of a user-supplied AUI (Attachment Unit Interface, or transceiver) cable.

The AUI cable connects the Ethernet Interface to a user-supplied transceiver that is directly connected to the 10Mbps Ethernet network. The transceiver must be 802.3 compatible and must have the SQE option enabled.
