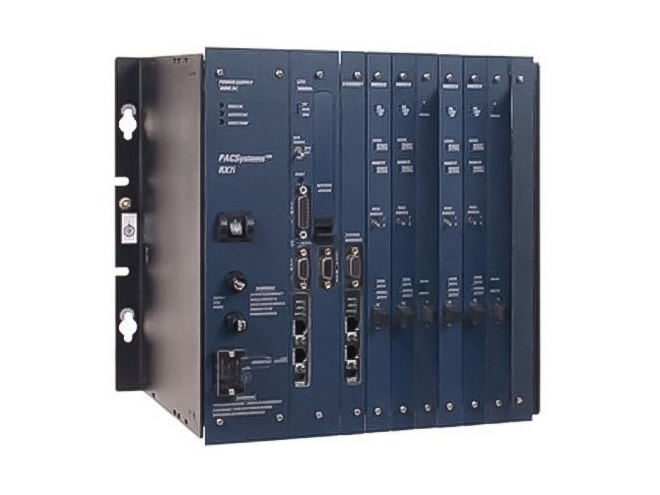

Repair GE-Emerson IC698CRE020 RX7i 700 MHz CPU

Central processing unit with 10MB and hot standby redundancy.

Repair

$2,707.60
Availability
  • Usually ships in 3-5 business days

Remanufactured

$3,868.00
Availability
  • Additional 2 ready to ship within 2-3 days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC698CRE020REP
Manufactured

Features

  • 10 MB of battery-backed RAM
  • +5 VDC: 4.5 Amps nominal
  • +12 VDC: 0.042 Amps nominal
  • -12 VDC: 0.008 Amps nominal
  • 32 to 140°F operating temperature (fan kit required)

The Remanufactured GE-Emerson IC698CRE020 RX7i 700 MHz CPU comes with Hot Standby Redundancy, ensuring the uninterrupted operation of crucial applications even in the event of a failure in any individual component. A Hot Standby system employs a pair of CPUs – one serves as the active unit, actively overseeing the process, while the other functions as a backup unit, maintaining synchronization with the active unit and ready to assume control when needed. To achieve redundancy, the IC698CRE020 requires a Redundancy Memory Xchange module (RMX), identified as IC698RMX016 in the catalog. Typically, it is set up as a redundancy link within each unit.

The IC698CRE020 comes equipped with a software program that is tailored to initiate and execute particular tasks. These tasks encompass real-time control of the device, overseeing overall machine processes, and managing material-related functions. Noteworthy attributes of the IC698CRE020 include 10MB of battery-backed memory and 10MB of non-volatile flash memory, access to bulk memory, and the ability to configure user-specific data and program memory.
