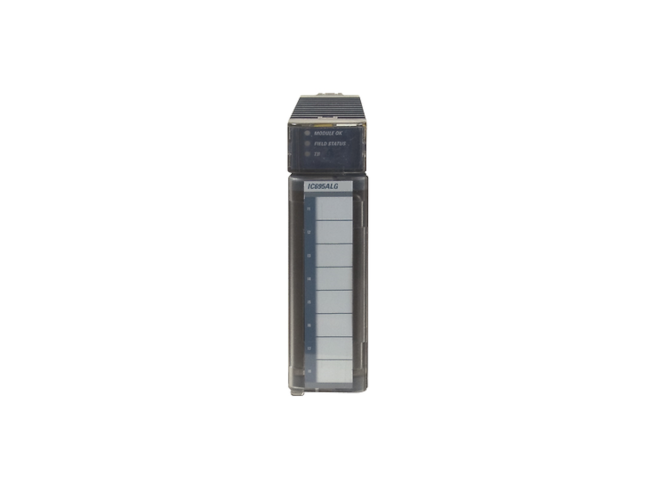

Remanufactured GE-Emerson IC695ALG626 PACSystems RX3i Analog Input Module

Rack-based IO offers advanced diagnostics and 4 internal HART modems.

Remanufactured

Call for pricing
Availability
  • Out of Stock

Repair

$1,348.03
Availability
  • Usually ships in 3-5 business days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC695ALG626RMN
Manufactured

Features

  • 16 single-ended or 8 differential inputs
  • 3.3V: 600mA; 5V: 450 mA internal power
  • 0-20 mA, 4-20 mA, +/-20 mA current range
  • +/-10V, 0-10V, +/-5V, 0-5V,1-5V voltage range

The Remanufactured GE-Emerson IC695ALG626 PACSystems RX3i Analog Input Module is an analog input module compatible with Highway Addressable Remote Transducer (HART) 5.0 communication protocol, designed for integration into the PACSystem RX3i platform.

The primary function of this module is to connect with analog field instruments responsible for measuring process variables and then transmitting these measurements to a recipient element, such as the IC695ALG626, for further processing. As a result, the IC695ALG626 can effectively collaborate with field instruments offering a range of current signals from 0 to 20mA, 4 to 20mA, and ±20mA, as well as voltage signals spanning ±10V, 0 to 10V, ±5V, 0 to 5V, and 1 to 5V.

This module provides a selection of 8 differential and 16 single-ended input channels. The IC695ALG626 analog input module offers a voltage range of +/-10 Volts DC, 0 to 10 Volts DC, +/-5 Volts DC, 0 to 5 Volts DC, or 1 to 5 Volts DC. The input channels can be set within the range of 0 to 20 milliamps, 4 to 20 milliamps, or +/-20 milliamps. If the channels are employing HART communications, it is advisable to configure the IC695ALG626 analog input module for a current range of 4 to 20 milliamps.
