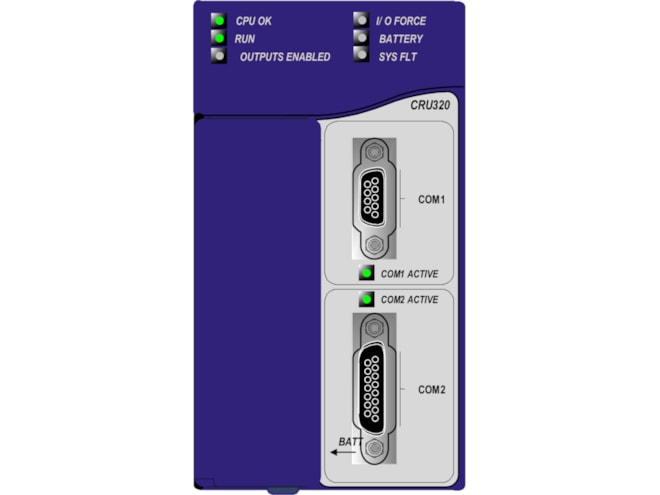

Repair GE-Emerson IC695CRU320 PACSystems Rx3i Redundancy CPU

Performs real time control of machines, processes, and material handling systems.

Repair

$3,848.60
Availability
  • Usually ships in 3-5 business days

Remanufactured

$5,498.00
Availability
  • 4 in stock
  • Additional 3 ready to ship within 2-3 days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC695CRU320REP
Manufactured
Product Specs

Features

  • Contains 64MB of battery-backed user memory and 64MB of non-volatile flash user memory
  • Provides access to bulk memory via reference table %W
  • Configurable data and program memory
  • Ladder Diagram, Structured Text, Function Block Diagram, and C programming
  • Supports auto-located Symbolic Variables that can use any amount of user memory
  • Reference table sizes include 32Kbits for discrete %I and %Q and up to 32K words each for analog %AI and %AQ
  • Supports most Series 90-30 modules and expansion racks
  • Supports up to 512 program blocks; max. block size is 128kb
  • CPU firmware may be upgraded in the field
  • CPU supports firmware upgrades of modules in its backplane
  • Two serial ports: an RS-485 serial port and an RS-232 serial port
  • Ethernet communications via the rack-based Ethernet Interface module (IC695ETM001)
  • Time Synchronization to SNTP Time Server on Ethernet network when used with Ethernet Release 5.0 or later
  • Compliant with EU RoHS Directive 2002/95/EC using the following exemptions identified in the Annex: 7(a), 7(c)-I, & 7(c)-III

The GE-Emerson IC695CRU320 PACSystems Rx3i Redundancy CPU communicates with the programmer and HMI devices via a serial port using SNP Slave protocol. It communicates with I/O and smart option modules over a dual backplane bus that provides a high-speed PCI backplane for fast throughput of new advanced I/O, as well as a serial backplane for easy migration of existing Series 90-30 I/O.

The CPU provides Hot standby (HSB) redundancy. Two redundant units make up a redundancy system. Each unit requires one Redundancy CPU (CRU320 and a redundancy Memory Xchange module (IC695RMX128/228) configured as a redundancy link.

The CPU's components are considered open equipment (having live electrical parts that may be accessible to users) and must be installed in an ultimate enclosure that is manufactured to provide safety. At a minimum, the enclosure shall provide a degree of protection against solid objects as small as 12mm. This equates to a NEMA/UL Type 1 enclosure or an IEC60529 IP20 rating, providing at least a pollution degree 2 environment.
