Repair GE-Emerson IC695LRE001 PACSystems Rx3i Serial Bus Transmitter Module

Provides communication between a Universal Backplane (IC695), and serial expansion and remote backplanes (IC694 or IC693).

Repair

$140.00
Availability
  • Usually ships in 3-5 business days

Remanufactured

$175.00
Availability
  • Additional 5 ready to ship within 2-3 days

For on-site repair and support, call us at 1-704-448-2212 or email sales@qualitrol.com.

Part Number
  • IC695LRE001REP
Manufactured
Product Specs

Features

  • 132mA current required from backplane (5V)
  • Max. total expansion cable length:
    • Expansion Backplanes: 50ft
    • Remote Backplanes: 700ft
  • 500kb/s effective data rate (if the expansion bus includes Remote backplanes)
  • Non-isolated differential communications
  • Station Manager Port: RS-232 DCE, 1,200 to 115,200 bps

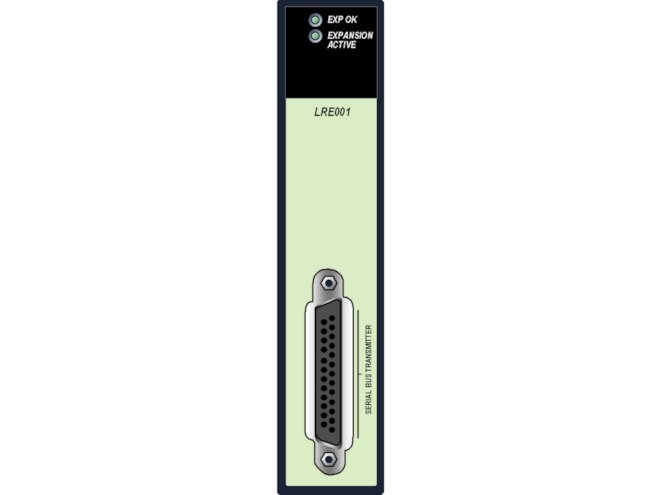

The GE-Emerson IC695LRE001 PACSystems Rx3i Serial Bus Transmitter Module translates the signal levels present in the Universal Backplane to the signal levels required by a Serial Expansion Backplane.

The Serial Bus Transmitter Module must reside in the special expansion connector on the right end of the Universal Backplane. Two green LEDs indicate the operating status of the module and the status of the expansion link.

  • The EXP OK LED is lit when backplane 5V power is applied to the module.
  • The Expansion Active LED indicates the status of the expansion bus. This LED is ON when the Expansion module is communicating with expansion backplanes. It is OFF when they are not communicating.

The connector on the front of the module is used to attach the expansion cable.

The Serial Bus Transmitter Module must reside in the special expansion connector on the right end of the Universal Backplane. This module may not be hot-inserted in the backplane; power must be removed before installing or removing the Expansion Module. In addition, the expansion cable may not be attached or removed if  the expansion rack has power applied.
