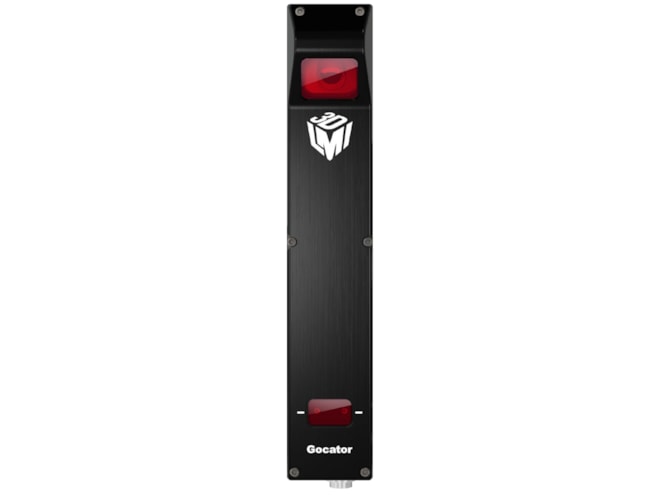

Repair of LMI Technologies 312380D-3R-R-01-T Model 2380 Gocator

Top mount, 3R laser class, Red Spectrum.

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks
Part Number
  • 312380D-3R-R-01-TREP
Manufactured
Product Specs

Features

  • 1,280 data points / profile
  • 0.04 (+/- % of MR) Linearity Z
  • Resolution:
    • Z (mm) 0.092 to 0.488
    • X (mm) 0.375 to 1.100 (profile data interval)
  • 12μm Repeatability Z
  • 350mm clearance distance (CD)
  • 800mm measurement range (MR)
  • 390 to 1,260mm field of view (FOV)
  • 49mm x 75mm x 272mm dimensions
  • ~170 to 5,000Hz scan rate
  • Gigabit Ethernet interface
  • Inputs:
    • Differential Encoder
    • Laser Safety Enable
    • Trigger
  • Outputs:
    • 2x digital output
    • RS-485 Serial (115 kBaud)
  • Input voltage (power):
    • +24 to +48VDC (13W)
    • Ripple: +/- 10%

The LMI Technologies 312380D-3R-R-01-T Model 2380 Gocator is a 3D smart line profile sensor pre-calibrated to scan micron-level details. The sensor can be set up and controlled via a web browser, includes built-in tools, requires no programming, and includes an open-source SDK.

The Gocator 2300 sensors measure micron-level features leveraging megapixel resolution while maintaining large fields of view, and can screen parts for very small defects. Single sensors require no additional controllers, amplifiers, or PCs, and can scale to multiple sensors using LMI Master hubs. Masters take care of power distribution, laser safety interlock, encoder and digital input handling, and microsecond synchronization.

The Gocator's small footprint and <1.5kg weight make it ideal for fitting into tight spaces and mounting onto robotic arms. The built-in GUI allows for flexible configuration of profiling settings and measurement tools using any web browser, computer, or operating system.

Gocator Repair Service Level 1 includes:

  • Device cleaned and visually inspected for damages
  • Device verified for operation and accuracy
  • External components replaced, as required
  • 6-month warranty
  • Move to Level 2 repair if internal damage is present due to broken connector/window

Gocator Repair Service Level 2 includes:

  • All Level 1 repairs
  • Internal components replaced, as required
  • Limited 1-year warranty
