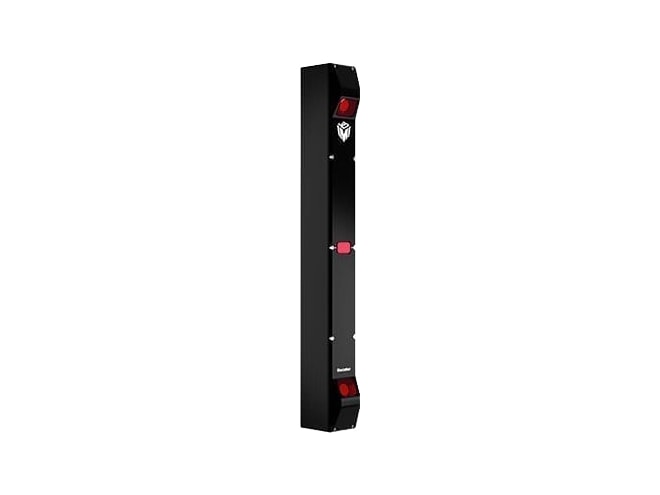

Repair of LMI Technologies 312880D-3R-R-01-T Model 2880 Gocator

Top mount, 3R laser class, Red Spectrum.

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks
Part Number
  • 312880D-3R-R-01-TREP
Manufactured
Product Specs

Features

  • 1,280 data points / profile
  • Resolution X: 0.375 to 1.1mm
  • 0.04% of MR Linearity Z
  • 0.092 to 0.488mm Resolution Z
  • 350mm clearance distance (CD)
  • 800mm measurement range (MR)
  • 390 to 1,260mm field of view (FOV) (diffuse)
  • 380 to 5,000Hz scan rate
  • Gigabit Ethernet interface
  • Inputs:
    • Differential Encoder
    • Laser Safety Enable
    • Trigger
  • Outputs:
    • 2x digital output
    • RS-485 Serial
  • Input voltage (power):
    • +24 to +48VDC (13W)
    • Ripple: +/- 10%

The LMI Technologies 312880D-3R-R-01-T Model 2880 Gocator is a 3D smart line profile sensor that provides reduced occlusion with built-in dual cameras. It is designed for high speed and low latency and can be set up and controlled via a web browser. The sensor includes built-in tools with no programming and an open-source SDK.

The 2880 Gocator is designed to scan large objects with complicated shapes. Single sensors require no additional controllers, amplifiers, or PCs to operate, and can scale to a multiple-sensor network using LMI Master hubs. Masters take care of distribution, laser safety interlock, encoder and digital input handling, and microsecond synchronization.

Standardized cabling and the 500mm unit size simplify mounting and system integration. Gocator's built-in Graphical User Interface (GUI) allows for flexible configuration of profiling settings and measurement tools using any web browser, computer, or operating system.

Gocator Repair Service Level 1 includes:

  • Device cleaned and visually inspected for damages
  • Device verified for operation and accuracy
  • External components replaced, as required
  • 6-month warranty
  • Move to Level 2 repair if internal damage is present due to broken connector/window

Gocator Repair Service Level 2 includes:

  • All Level 1 repairs
  • Internal components replaced, as required
  • Limited 1-year warranty
