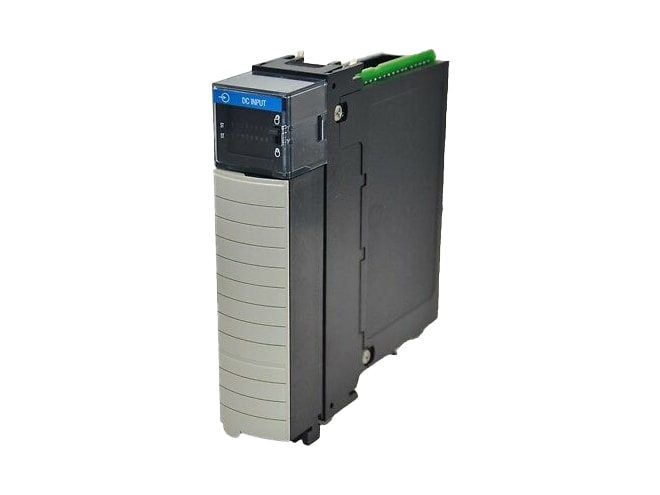

Remanufactured Allen-Bradley 1756-IB16 ControlLogix DC Digital Input Module

16 inputs with 8 per group, 12/24V DC sink voltage category.

Remanufactured

$582.40
Availability
  • 33 in stock
  • Additional 10 ready to ship within 2-3 days

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks
Part Number
  • 1756-IB16RMN
Manufactured
Product Specs

Features

  • 10 to 31.2VDC operating voltage range
  • 24VDC nominal input voltage
  • Input delay time:
    • OFF to ON: Hardware delay, 290µs nom/1ms max + filter time
      • User-selectable filter time: 0, 1, or 2ms
    • ON to OFF: Hardware delay: 700µs nom/2ms max + filter time
      • User-selectable filter time: 0, 1, 2, 9, or 18ms
  • Current draw:
    • 100mA at 5.1V
    • 2mA at 24V
  • 0.56W total backplane power
  • 5.1W @ 140°F max. power dissipation
  • 17.39 BTU/hr thermal dissipation
  • 5V max. off-state voltage
  • 1.5mA max. off-state current
  • On-state current:
    • Min: 2mA @ 10VDC
    • Max: 10mA @ 31.2VDC

The Allen-Bradley 1756-IB16 ControlLogix DC Digital Input Module uses Producer-Consumer technology, allowing input information and output status to be shared among multiple ControlLogix controllers. All ControlLogix I/O modules mount in a ControlLogix chassis.

The module includes 16 I/O status LED indicators on the front side, each of which turns yellow when its corresponding input is active, and the user can assign a filtering time for each input. Filtering can be set to 0ms (no filtering) thru 18ms. The module can be inserted or removed under power.
