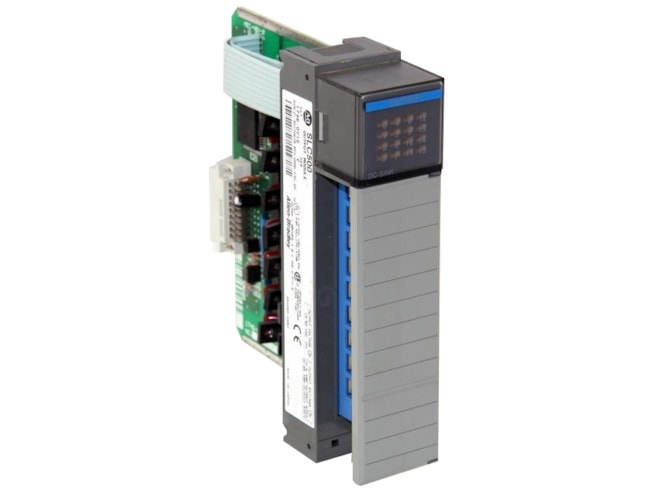

Repair Allen-Bradley 1746-OV16 SLC 500 Current Sinking DC Output Module

16 outputs and points per common, 24VDC input voltage.

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks

Remanufactured

$100.00
Availability
  • 29 in stock
  • Additional 2 ready to ship within 2-3 days
Part Number
  • 1746-OV16REP
Manufactured
Product Specs

Features

  • 10 to 50VDC output voltage
  • Backplane current:
    • 270mA at 5V
    • 0mA at 24V
  • 1.2V @ 0.5A max. voltage drop, on-state output
  • 1mA min. load current
  • 1mA max. leakage current, off-state output
  • Max. signal delay (resistive load):
    • ON: 0.1ms
    • OFF: 1ms
  • Continuous current per module:
    • 8.0A @ 86°F
    • 4.0A @ 140°F
  • Continuous current per point:
    • 1.0A @ 86°F
    • 0.5A @ 140°F
  • 3.0A surge current per point for 10ms

The Allen-Bradley 1746-OV16 SLC 500 Current Sinking DC Output Module uses ladder logic programming that can directly access the output values. The 1746-OV16 has a removable terminal block that allows the user to easily access and make changes to the wiring.

Power must be deactivated on the device prior to installation. The module is designed to remain functional at operating temperatures from 32 to 140°F and can withstand heavy vibration and relatively 0 to 95% non-condensing humidity.
