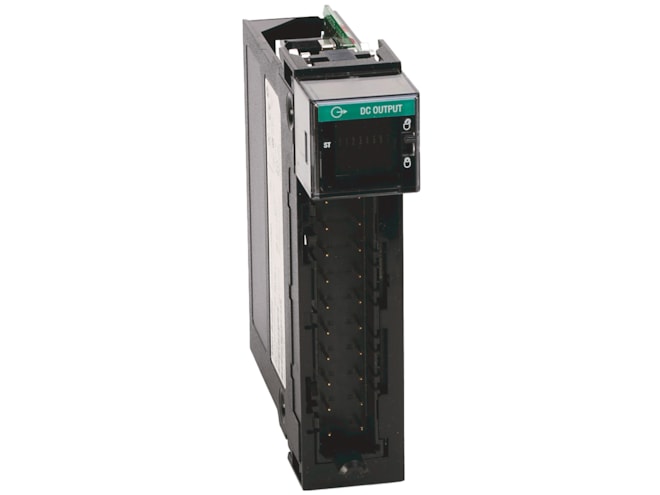

Remanufactured Allen-Bradley 1756-OB8 ControlLogix DC Digital Output Module

8 outputs in two groups of 4, 12/24VDC source voltage category.

Remanufactured

$556.92
Availability
  • 13 in stock

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks
Part Number
  • 1756-OB8RMN
Manufactured
Product Specs

Features

  • 10 to 30VDC operating voltage range
  • Signal delay:
    • OFF: 2ms max
    • ON: 1ms max
  • 8A @ 140°F max. current per module
  • 2A @ 140°F current per point
  • Backplane current:
    • 165mA at 5.1VDC
    • 2mA at 24VDC
  • 0.89W total backplane power
  • 2.5W max. power dissipation at 140°F
  • 50V continuous isolation voltage

The Allen-Bradley 1756-OB8 ControlLogix DC Digital Output Module is ideal for energizing electrical loads that operate in DC voltage and AC loads, with interposing circuitry. The 1756-OB8 is a single slot module and occupies any available slot of the chassis except for the left-most slot. It can act as a local I/O component or as part of a distributed I/O system. The module can install in any ControlLogix chassis and operate along standard or power supply modules.

The module uses a removable terminal block (RTB) to connect the module's channels to electrical loads, and can communicate in multiple formats: rack optimization, listen-only rack optimization, listen-only output data, output data, and scheduled output data. The module can also perform pilot duty.
