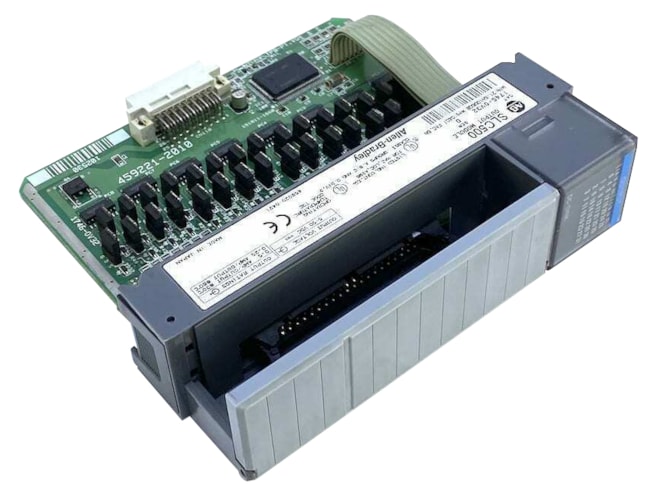

Repair Allen-Bradley 1746-OV32 SLC-500 Current Sinking DC Output Module

32 output points with 16 points per common, 24VDC voltage category.

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks

Remanufactured

$100.00
Availability
  • 11 in stock
  • Additional 3 ready to ship within 2-3 days
Part Number
  • 1746-OV32REP
Manufactured
Product Specs

Features

  • Backplane current:
    • 270mA at 5V
    • 0mA at 24V
  • 1.2V max. voltage drop @ 0.5A, on-state output
  • 1mA min. load current
  • 1mA max. leakage current, off-state output
  • Max. signal delay, resistive load
    • ON: 0.1ms
    • OFF: 1.0ms
  • Continuous current per point:
    • 0.50 A @ 86°F
    • 0.25 A @ 140°F
  • 3.0 A surge current per point for 10ms

The Allen-Bradley 1746-OV32 SLC-500 Current Sinking DC Output Module is compatible with installation on any SCL 500 chassis. The module includes a 40-pin female connector and crimp type pins, allowing the user to wire I/O devices to the module using a 40-conductor cable or individual wires.
