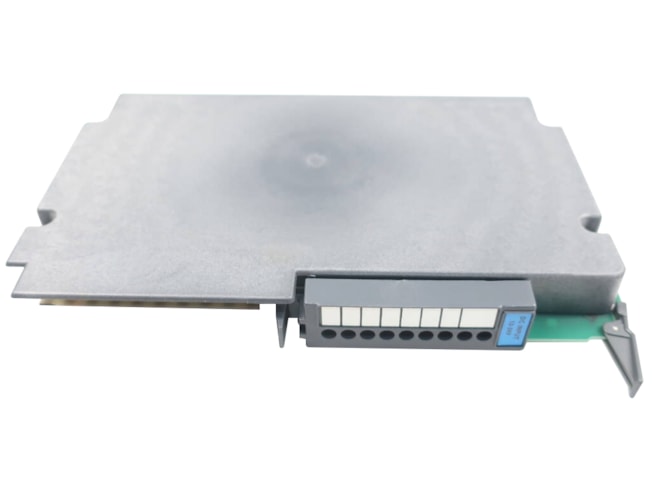

Remanufactured Allen-Bradley 1771-IB PLC-5 DC Digital Input Module

8 inputs, 10 to 60VDC voltage category, sink (source load).

Remanufactured

$112.00
Availability
  • 11 in stock

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks
Part Number
  • 1771-IBRMN
Manufactured

Features

  • 10 to 27VDC operating voltage
  • 74mA backplane current
  • 3.0mA max. DC off-state current
  • Typical DC signal delay:
    • ON: 12ms (+/-7ms)
    • OFF: 20ms (+/-7ms)
  • Typical AC signal delay:
    • OFF: 20ms (+/-15ms)

The Allen-Bradley 1771-IB PLC-5 DC Digital Input Module converts DC signals provided by other user devices to a processor's logic level, and controls the state of corresponding bits in the PLC data table. A 1771-W wiring arm is including for replacing the module, removing the need to disconnect the wiring. The module supports 1/2, 1, and 2-slot I/O addressing, and is compatible with source-switching devices such as dry-contact switches, electro-mechanical transmitters, and panel-switching devices such as selector switches and pushbutton.

Eight red status indicators for field side indication exist at the front panel. The module contains opto-electrical isolation to protect the system circuits from electrical transients.
