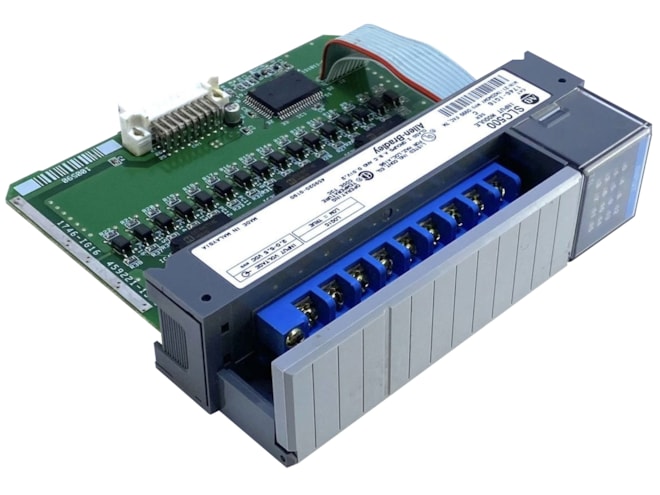

Remanufactured Allen-Bradley 1746-IB16 SLC 500 Current Sinking DC Input Module

16 non-isolated sinking inputs, 24VDC rating.

Remanufactured

$155.68
Availability
  • 9 in stock
  • Additional 54 ready to ship within 2-3 days

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks
Part Number
  • 1746-IB16RMN
Manufactured
Product Specs

Features

  • 10 to 30VDC operating voltage
  • Backplane current consumption:
    • 0.05A @ 5VDC
    • 0.0A @ 24VDC
  • Max. signal delay:
    • ON: 8ms
    • OFF: 8ms
  • 5.0VDC max. off-state voltage
  • 1mA max. off-state current
  • 8mA @ 24VDC nominal input current

The Allen-Bradley 1746-IB16 SLC 500 Current Sinking DC Input Module includes self-lifting pressure plates that accept 14 AWG size conductors. The module comes with a color-coded removable terminal block (RTB), which provides a simplified wiring base and allows for an easier exchange of I/O modules without rewiring.

The module features optical isolation between input and backplane, surge protection, and input filtering capability for maintaining reliability in noisy industrial environments.
