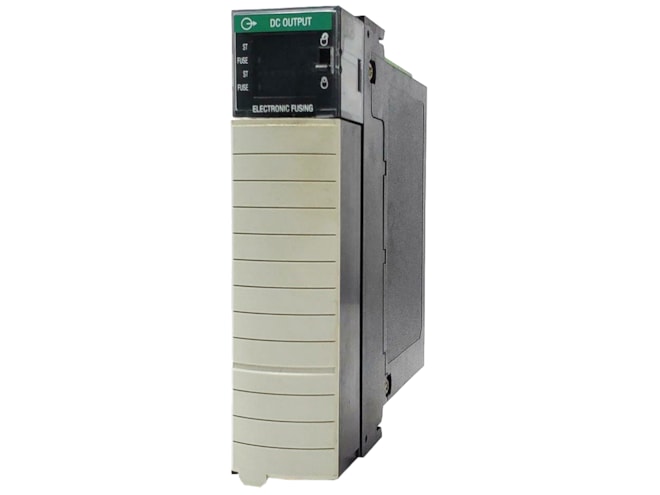

Remanufactured Allen-Bradley 1756-OB16E ControlLogix Discrete DC Output Module

16 electronically fused outputs, 8 points/group.

Remanufactured

$514.08
Availability
  • 10 in stock
  • Additional 11 ready to ship within 2-3 days

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks
Part Number
  • 1756-OB16ERMN
Manufactured

Features

  • 12/24VDC source voltage category
  • 10 to 31.2VDC operating voltage range
  • Output delay time:
    • OFF to ON: 70μs nom/1ms max
    • ON to OFF: 360μS nom/1ms max
  • Current draw:
    • 250mA @ 5.1V
    • 2mA @ 24V
  • 1.32W total backplane power
  • 4.1W max. power dissipation @ 140°F
  • 13.98 BTU/hr thermal dissipation
  • 1mA per point max. off-state leakage current
  • 400mVDC @ 1A max. on-state voltage drop
  • 1A @ 140°F max. current per point
  • 8A @ 140°F max. current per module

The Allen-Bradley 1756-OB16E ControlLogix Discrete DC Output Module is designed for actuating 24VDC rated devices such as relay coils, solenoid actuated devices, pilot lamps, sirens, and other similar loads.

The module is single-slot wide, and is compatible with any 1756 ControlLogix controller. It can be used to install a 1756 ControlLogix rack, or as a local I/O or distributed I/O component. Each group includes built-in electronic fusing.
