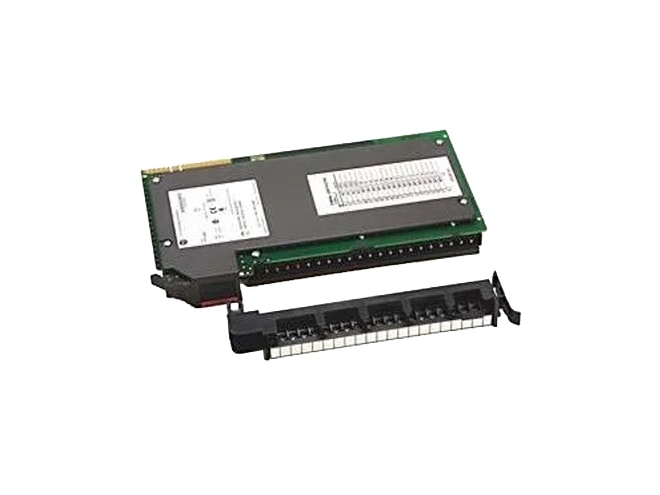

Repair Allen-Bradley 1771-IBD PLC-5 Discrete Input Module

16 inputs per module; 10 to 30VDC input voltage range.

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks

Remanufactured

$112.00
Availability
  • 7 in stock
Part Number
  • 1771-IBDREP
Manufactured

Features

  • Minimum input current:
    • 4.5mA @ 10VDC
    • 15mA @ 30VDC
  • 2.0mA @ 5VDC min. off-state current
  • 5VDC max. off-state voltage
  • 10VDC min. on-state voltage
  • 2.2Kohms max. input impedance
  • Input signal delay:
    • Low to high propagation delay - 1ms
    • High to low propagation delay selectable - 1ms or 6ms
  • 1.0 to 7.3W power dissipation
  • 3.4 to 24.7 BTU/hr thermal dissipation
  • 130mA @ 5VDC +/-5% backplane current
  • Isolation voltage meets or exceeds requirements of:
    • UL Standard 508
    • CSA Standard C22.2 No. 142

The Allen-Bradley 1771-IBD PLC-5 Discrete Input Module is a single slot module and is mounted for any of the available 1771 chassis except for the 1771-A1, 1771-A2, and 1771-A4. The module is typically used to interface field signaling devices such as switches, sensors, and auxiliary contacts that represent the state of the process, and is especially compatible with ON/OFF, 1 or 0 or binary operating devices.

The module includes a wiring arm for ease of wiring and simplified replacing of the module in case of module malfunction, eliminating the need to disconnect the wiring first. The module supports 1/2, 1, and 2-slot I/O addressing, and is compatible with source-switching devices such as dry-contact switches, electro-mechanical transmitters, and panel-switching devices such as selector switches and pushbutton.
