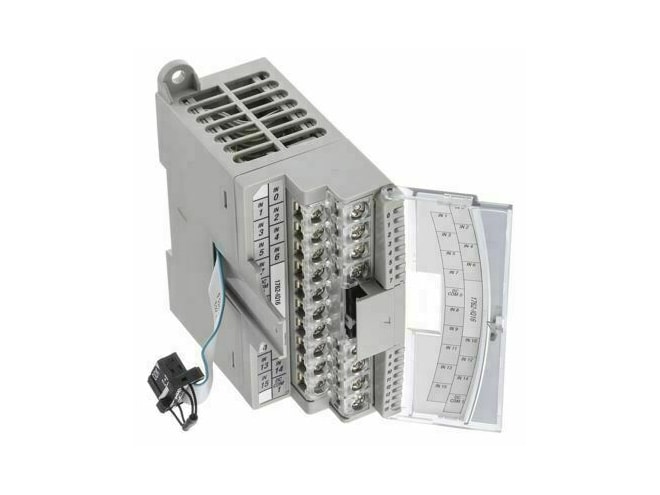

Remanufactured Allen-Bradley 1762-IQ16 MicroLogix Discrete DC Input Module

16 sinking and sourcing inputs, 2 commons.

Remanufactured

$677.88
Availability
  • 6 in stock
  • Additional 4 ready to ship within 2-3 days

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks
Part Number
  • 1762-IQ16RMN
Manufactured

Features

  • 24VDC input power
  • Operating voltage range:
    • 10 to 30VDC
    • 10 to 26.4VDC
  • 8.0ms signal delay
  • 5VDC max. off-state voltage
  • 1.5mA max. off-state current
  • 10VDC min. on-state voltage
  • On-state current:
    • Min: 2.0mA @ 10VDC
    • Nom: 8.0mA @ 24VDC
    • Max: 12.0mA @ 30VDC
  • IP20 enclosure rating

The Allen-Bradley 1762-IQ16 MicroLogix Discrete DC Input Module is designed for use in industrial environments, including clean, dry environments (Pollution degree 2) and circuits not exceeding Over Voltage Category II (IEC 60664-1). The module is a suitable expansion for the MicroLogix 1100, 1200, and 1400 PLCs, and can be mounted on a panel or DIN rail. The 1762-IQ16 is a sinking and sourcing module that regulates the current flow between the input module and the connected device. A finger-safe cover is included for wiring the input terminal blocks. Operational details for the module must be configured for each channel after installation.
