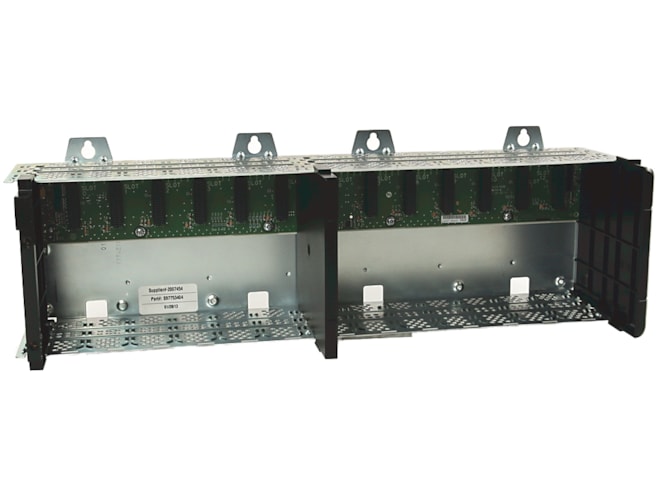

Repair Allen-Bradley 1756-A13 ControlLogix 13-Slot Rack

Panel mount, 8 mounting tabs.

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks

Remanufactured

$142.24
Availability
  • 5 in stock
Part Number
  • 1756-A13REP
Manufactured

Features

  • Backplane current:
    • 2.8A/2.8A @ 24VDC
    • 15A/6A @ 5.1VDC
    • 4A/4A @ 3.3VDC
    • 1.5A @ 1.2VDC
  • Wire size:
    • Functional Earth Ground: 8.3mm2 (8 AWG) solid or stranded copper wire rated at 194°F or greater
    • Protective Earth Ground: 2.1mm2 (14 AWG) solid or stranded copper wire rated at 194°F or greater
  • 5.4W max. power dissipation
  • Open enclosure

The Allen-Bradley 1756-A13 ControlLogix 13-Slot Rack provides module slots for ControlLogix controllers and I/O modules, and the electronic circuitry that makes up the backplane. The backplane distributes the current used by each module to energize individual circuitry and function properly.

The rack is horizontally mounted only, and requires a minimum cabinet size of 24in x 30in x 8in for installation. The rack is directly installed to the subpanel of the enclosure using the mounting tabs located on the top and bottom of the chassis. The rack may be used with the Logix 5560, 5570, and 5580 product families.
