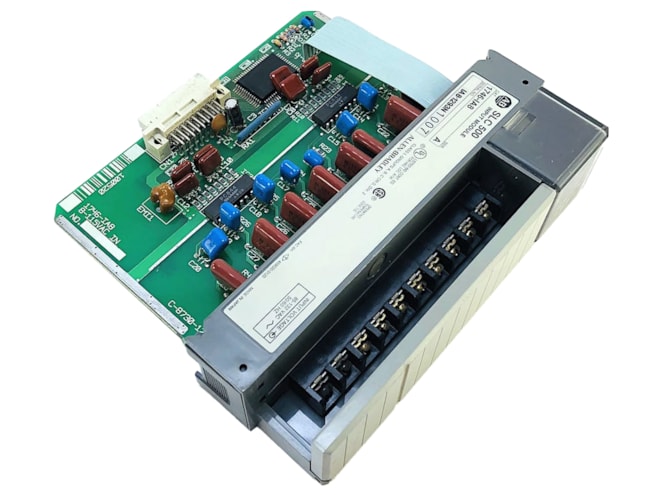

Remanufactured Allen-Bradley 1746-IA8 SLC 500 Digital AC Input Module

8 inputs and points per common.

Remanufactured

$65.00
Availability
  • 4 in stock
  • Additional 2 ready to ship within 2-3 days

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks
Part Number
  • 1746-IA8RMN
Manufactured
Product Specs

Features

  • 100/120VAC signal input voltage category
  • Operating voltage:
    • 85 to 132VAC @ 47 to 63Hz
  • Backplane current consumption:
    • 0.050A @ 5VDC
    • 0.0A @ 24VDC
  • Max. signal delay:
    • ON: 35ms
    • OFF: 45ms
  • 30VAC max. off-state voltage
  • 2mA max. off-state current
  • 12mA @ 120VAC nominal input current
  • 0.8A max. inrush current
  • 0.5ms max. inrush current time duration

The Allen-Bradley 1746-IA8 SLC 500 Digital AC Input Module is designed for general-purpose input applications, and includes a status display and open-style enclosure. The module is a chassis-type, and a current limiting resistor can be used to limit the inrush current. This will change or affect the operating characteristics of the AC input.
