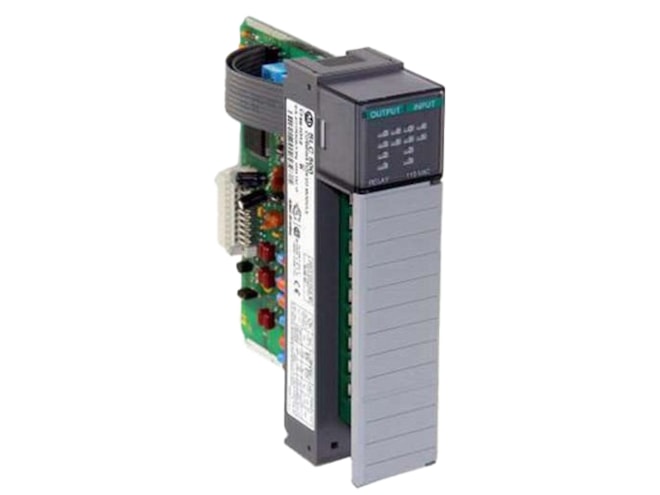

Remanufactured Allen-Bradley 1746-IO12 SLC 500 Combination Input and Output Module

6 inputs, 6 outputs, 6 points per common.

Remanufactured

$112.00
Availability
  • 3 in stock

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks
Part Number
  • 1746-IO12RMN
Manufactured
Product Specs

Features

  • 120VAC voltage category
  • Operating voltage:
    • Inputs: 85 to 132VAC
    • Outputs: 5 to 265VAC; 5 to 125VDC
  • 100/120VAC Relay contact output voltage category
  • Backplane current consumption:
    • 0.090A @ 5VDC
    • 0.070A @ 24VDC
  • Heat dissipation:
    • 0.20W per input point
    • 0.133W per output point
    • 2.13W minimum
    • 4.60W total

The Allen-Bradley 1746-IO12 SLC 500 Combination Input and Output Module uses a Normally-Open contact (N.O.) output type, and directly installs to the SLC 500 chassis. The module allows both chassis slot and panel slot saving through its dual operation capability. The 1746-IO12 may be mixed with other modules of the SLC 500 product family and placed in expansion or local chassis, except the slot dedicated for the PLC's processor. As the module's effectiveness may degrade when exposed to chemicals, regular maintenance and loop validation are recommended.
