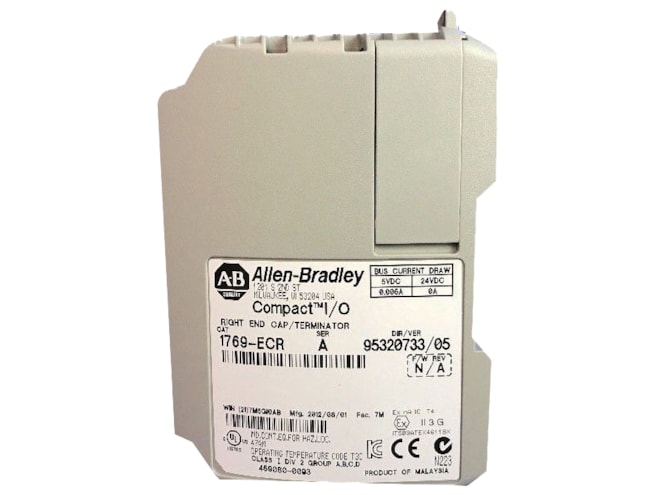

Remanufactured Allen-Bradley 1769-ECR CompactLogix Right End Cap Module

T3C North American temp code.

Remanufactured

$521.64
Availability
  • 3 in stock
  • Additional 1 ready to ship within 2-3 days

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks
Part Number
  • 1769-ECRRMN
Manufactured

Features

  • Current draw:
    • 5mA @ 5.1VDC
    • 0mA @ 24VDC
  • 6,562ft operating altitude
  • T4 IEC temp code
  • Open style enclosure type
  • 32 to 140°F operating temperature
  • 5g, 10 to 500Hz operating vibration
  • 1.4 Amps @ 24V
  • Operating shock:
    • DIN rail mount: 20g
    • Panel mount: 30g
  • 33.6W power consumption
  • 7.5W power dissipation

The Allen-Bradley 1769-ECR CompactLogix Right End Cap Module is designed for use with the CompactLogix controller series. The module functions as a bus terminator for the FlexBus circuitry, signaling the end of the assembly. This module is necessary for the CompactLogix configuration to qualify.

The module must only be inserted or removed from the system if power is off. To install, the lever of the bus should be lifted from its engaged position, after which the module is aligned along the guide slots and gently pushed to insert.
