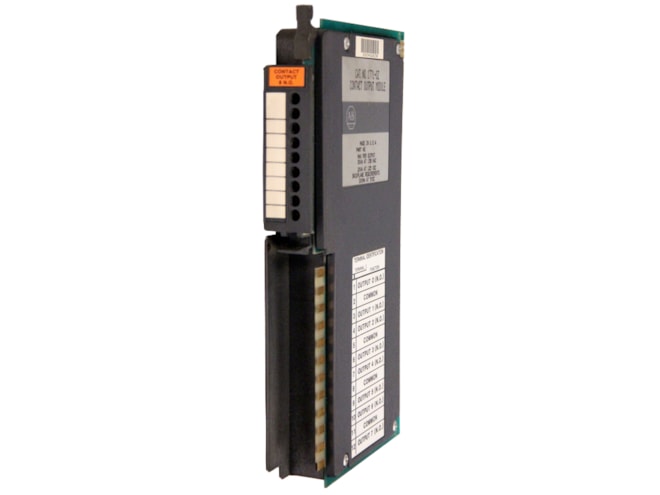

Remanufactured Allen-Bradley 1771-OZ PLC-5 Relay Contact Output Module

8 outputs in two groups of 4.

Remanufactured

$1,957.76
Availability
  • 1 in stock

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks
Part Number
  • 1771-OZRMN
Manufactured

Features

  • 8 Form A (N.O.) contact configuration
  • Voltage rating:
    • 0 to 24VAC rms
    • 0 to 24VDC
  • 100mA per output (max.) current rating
  • 100mA maximum per output (at rated power) surge current
  • Power rating:
    • DC: 2.4W per output (resistive)
    • AC (suppressed): 2.4W per output (resistive)
  • Minimum contact load:
    • DC: 1mA @ 0 to 24V
    • AC: 1mA @ 0 to 24V
  • 1ms max. operate/release time
  • 1ms max. bounce time
  • 10Hz max. switching frequency
  • 2 to 2.2W power dissipation
  • 6.9 to 7.6 BTU/hr thermal dissipation
  • 420mA max. backplane current
  • Isolation voltage:
    • 1kV between open contacts
    • 1.5kV between coil and contact

The Allen-Bradley 1771-OZ PLC-5 Relay Contact Output Module provides status indicators for each of its relay outputs, all of which switch on when the corresponding relay is energized. The module may be installed in any valid empty slot of the 1771 I/O chassis. The module takes up a single slot of space. As the PLC-5 power supply uses "soft-start" behavior, the output channels of the 1771-OZ may momentarily change operating state during power up and power off.
