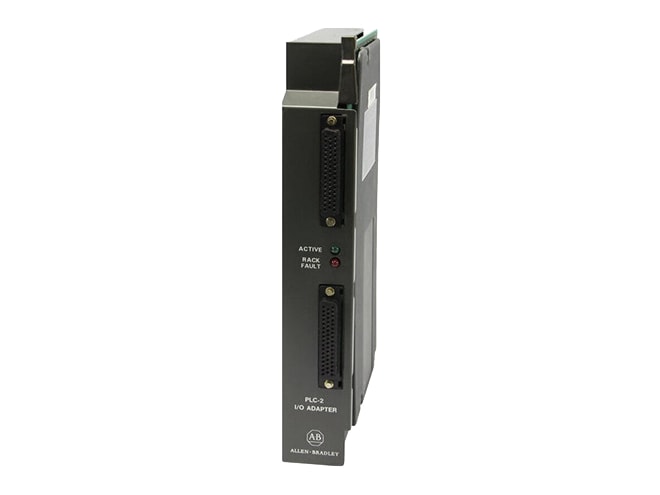

Remanufactured Allen-Bradley 1771-ALX PLC-5 Local I/O Adapter Module

Compatible with Series A or B 1771 I/O chassis.

Remanufactured

$100.00
Availability
  • 2 in stock

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks
Part Number
  • 1771-ALXRMN
Manufactured

Features

  • 98.4 cable-feet chassis distance
  • Interconnect cable:
    • 1771-CX1 (1m)
    • 1771-CX2 (2m)
    • 1771-CX5 (5m)
  • Cat. No. 1771-CXT cable terminator
  • 5.7 to 6.3W power dissipation
  • 19.44 to 21.48 BTU/hr thermal dissipation
  • 1.2A @ 5VDC backplane current
  • Keying:
    • Upper connector: between 54 and 56
    • Lower connector: between 4 and 6
  • Compatible with any 1771 external or slot power supplies

The Allen-Bradley 1771-ALX PLC-5 Local I/O Adapter Module must be placed in the left-most slot in the I/O chassis. Up to 16 local I/O adapters may be included in the bus, and the last adapter on the bus must be terminated with the terminator plug used in the PLC-5 programmable controller. The adapter is designed to allow disconnection of a rack from the bus without shutting the system down. The cable on an individual local I/O adapter can be removed without disrupting the bus communication to the rest of the system. Switches on the module and the I/O chassis backplane must be set to correspond to the particular application in use.
