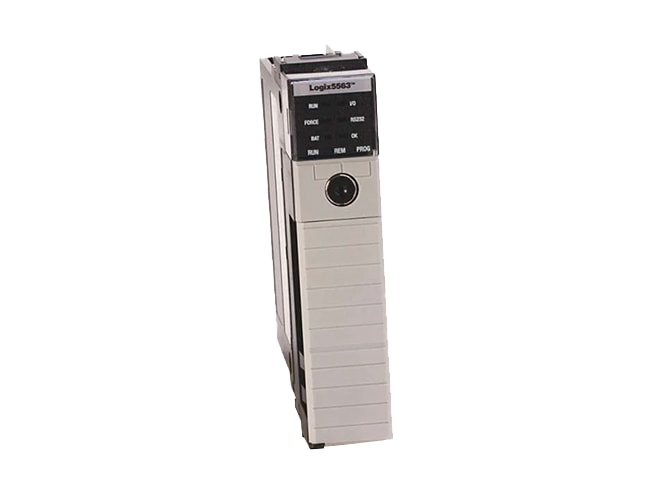

Repair Allen-Bradley 1756-L63 GuardLogix 5560 Programmable Automation Controller Processor

8 MB user memory, 3.75 MB safety memory.

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks

Remanufactured

$75.60
Availability
  • 2 in stock
Part Number
  • 1756-L63REP
Manufactured
Product Specs

Features

  • 478 KB I/O memory
  • 128 MB optional nonvolatile memory storage (1784-CF128)
  • 128,000 max. digital I/O
  • 4,000 max. analog I/O
  • 128,000 max. total I/O
  • Current draw:
    • 1,200mA @ 5.1VDC
    • 14mA @ 24VDC
  • 3.5W power dissipation
  • 11.9 BTU/hr thermal dissipation
  • Isolation voltage:
    • 30V (continuous)
    • Basic insulation type
    • RS-232 to system
    • Compliant and tested according to IEC/UL 61010-1

The Allen-Bradley 1756-L63 GuardLogix 5560 Programmable Automation Controller Processor supports multiple communication protocols, such as EtherNet/IP, ControlNet, DeviceNet, Data Highway Plus, Remote I/O, SynchLink and other 3rd party communication protocols via adapters and encompass partner modules, and comes with an RS232 Serial communication interface as its primary communication port. Controller redundancy is supported, and integrated motion can be achieved using Serial Real-Time Communication System (SERCOS), Analog options via an encoder input, LDT, SSI input, and motion over Ethernet/IP network.
