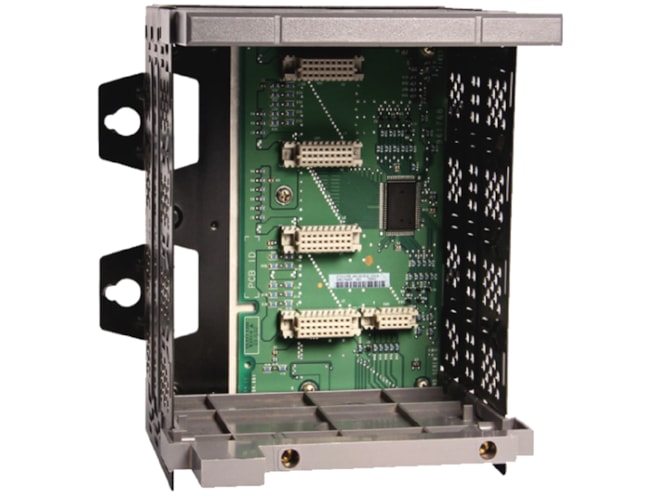

Repair Allen-Bradley 1746-A4 SLC 500 4-Slot Expansion Rack

Panel mount; UL and CE listed.

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks

Remanufactured

$100.00
Availability
  • 1 in stock
  • Additional 5 ready to ship within 2-3 days
Part Number
  • 1746-A4REP
Manufactured
Product Specs

Features

  • Max. backplane current:
    • 5.1VDC @ 10A
    • 24VDC @ 2.88A
  • 32 to 140°F operating temperature
  • -40 to 185°F storage temperature
  • 5 to 95% relative humidity without condensation

The Allen-Bradley 1746-A4 SLC 500 4-Slot Expansion Rack includes mounting tabs and houses SLC 500 modules, and belongs to the SLC 500 A Modular Chassis series. The rack requires its own power supply, screw-mounted on the left hand panel. The right and center panel do not require screw-mounting. The rack may be configured as a single unit or with multiple chassis. The connector plug should be kept on the left side when the rack is used as a single unit. Using the chassis interconnect cable, up to three chassis can be joined together, creating a maximum of 30 I/O slots.
