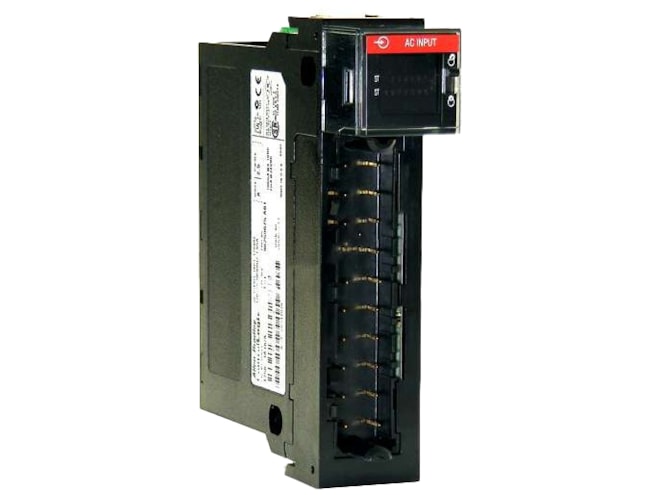

Remanufactured Allen-Bradley 1756-IA16 ControlLogix Discrete AC Input Module

Features

• 120VAC (50/60Hz) voltage category
• 74 to 132VAC (47 to 63Hz) operating voltage range
• Input delay time (screw to backplane):
  • OFF to ON, hardware delay: 10ms max + filter time
  • OFF to ON, user-selectable filter time: 1ms or 2ms
  • ON to OFF, hardware delay: 8ms max + filter time
  • ON to OFF, user-selectable filter time: 9ms or 18ms
• Current draw:
  • 100mA @ 5.1V
  • 2mA @ 24V
• 0.58W total backplane power
• 5.8W @ 140°F max. power dissipation
• 18.41 BTU/hr thermal dissipation
• 20V max. off-state voltage
• 2.5mA max. off-state current
• On-state current:
  • Min: 5mA @ 74VAC
  • Max: 13mA @ 132VAC
• 250mA peak max. inrush current (decaying to <37% in 22ms, without activation)
• 10.15 Kohms max input impedance @ 132VAC (60Hz)
