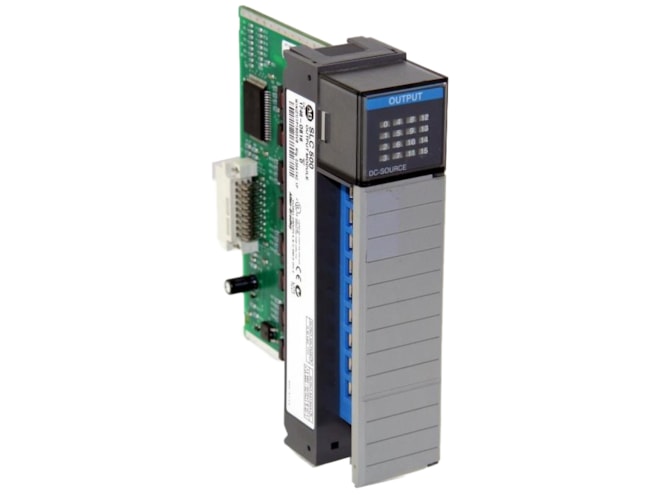

Repair Allen-Bradley 1746-OVP16 SLC 500 Digital DC Output Module

16 outputs and points per common.

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks

Remanufactured

$216.16
Availability
  • 1 in stock
Part Number
  • 1746-OVP16REP
Manufactured
Product Specs

Features

  • 24VDC signal output voltage category
  • 20.4 to 26.4 VDC (sink) operating voltage
  • Backplane current consumption:
    • 0.250A @ 5VDC
    • 0.0A @ 24VDC
  • Signal delay, max. resistive load:
    • ON: 0.1ms
    • OFF: 1.0ms
  • 1mA max. off-state leakage
  • 1mA min. load current
  • Continuous current per point:
    • 1.5A @ 86°F
    • 1.0A @ 140°F
  • Continuous current per module:
    • 6.4A @ 32 to 140°F
  • 1.0V @ 1.0A max. on-state voltage drop
  • 4.0A for 10ms surge current per point

The Allen-Bradley 1746-OVP16 SLC 500 Digital DC Output Module is a high-current sinking module that provides short-circuit protection via a fused common and blown fuse LED indicator. An LED indicator also illuminates if all outputs are deactivated due to a processor error. The module is designed to be highly customizable for various applications. Color-coded RTBs are included, and LED indicators are on the front of the module, so the I/O point status should be displayed.
