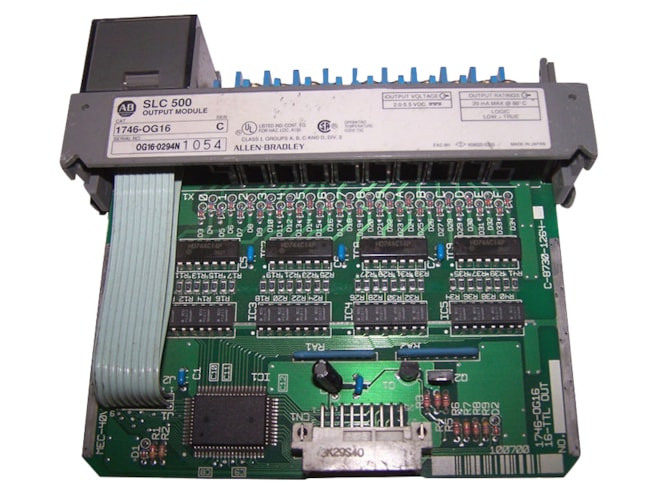

Remanufactured Allen-Bradley 1746-OG16 SLC 500 Digital DC TTL Output Module

16 outputs and points per common.

Remanufactured

$515.20
Availability
  • 1 in stock

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks
Part Number
  • 1746-OG16RMN
Manufactured
Product Specs

Features

  • 5VDC TTL signal input (sinking) voltage category
  • Operating voltage (VDC to DC COM):
    • 4.5 to 5.5VDC
    • 50mV max. peak to peak ripple
  • Backplane current consumption:
    • 0.180A @ 5VDC
    • 0.0A @ 24VDC
  • Signal delay, max. resistive load:
    • ON: 0.25mA
    • OFF: 0.50mA
  • 4.5 to 5.5VDC off-state voltage
  • 0.1mA max. off-state leakage
  • 0.15mA min. load current
  • 24mA continuous current per point

The Allen-Bradley 1746-OG16 SLC 500 Digital DC TTL Output Module uses inverted logic, and a NOT instruction is needed to negate the naturally inverted logic. While the default preset provides for acceptable operation, the parameters may be modified for a custom-defined operation. Individual channels may be monitored or FORCED activated via the data table, which can be viewed by various means such as binary, decimal, octal, and hexadecimal. The data table allows drag and drop operation during actual programming.
