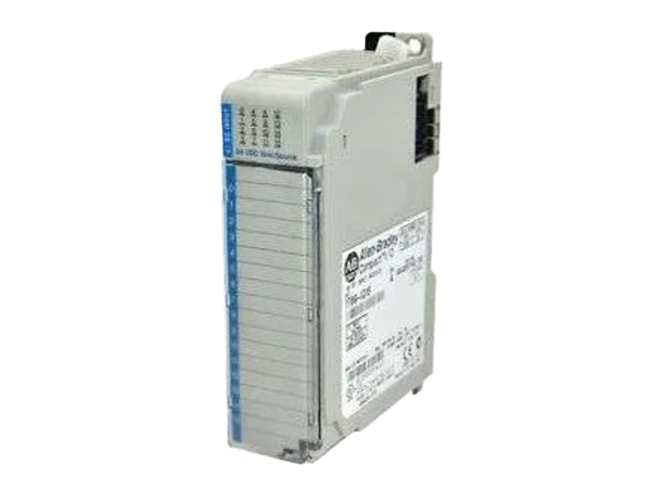

Repair Allen-Bradley 1769-IQ16 CompactLogix DC Digital Input Module

16 inputs, 8 points per group; 24VDC sink/source voltage category.

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks

Remanufactured

$491.40
Availability
  • 1 in stock
  • Additional 1 ready to ship within 2-3 days
Part Number
  • 1769-IQ16REP
Manufactured

Features

  • Operating voltage range:
    • 10 to 30VDC @ 86°F
    • 10 to 26.4VDC @ 140°F
  • Input delay:
    • ON: 8ms
    • OFF: 8ms
  • 115mA @ 5.1V current draw
  • 3.55W max. heat dissipation
  • 5VDC max. OFF-state voltage
  • 1.5mA max. OFF-state current
  • 10VDC min. ON-state voltage
  • 2mA min. ON-state current
  • 250mA max. inrush current
  • 3kW nom. input impedance
  • Isolation voltage (verified by one of the following dielectric tests):
    • 1,200VAC for 1s or 1,697VDC for 1s
    • Input point to bus and group to group 75VDC working voltage (IEC Class II reinforced insulation)
  • Single slot width, DIN rail or panel mount
  • 8 module power supply distance rating

The Allen-Bradley 1769-IQ16 CompactLogix DC Digital Input Module is designed for use with MicroLogix 1500 controllers, and the 1769 CompactLogix family of controllers. The module interfaces with ON/OFF mode devices that are rated for 24VDC voltage, including relay and magnetic contactors, auxiliary contacts, thermal overload mechanisms, switches, sensors, and more. Channel groups are able to independently operate.
