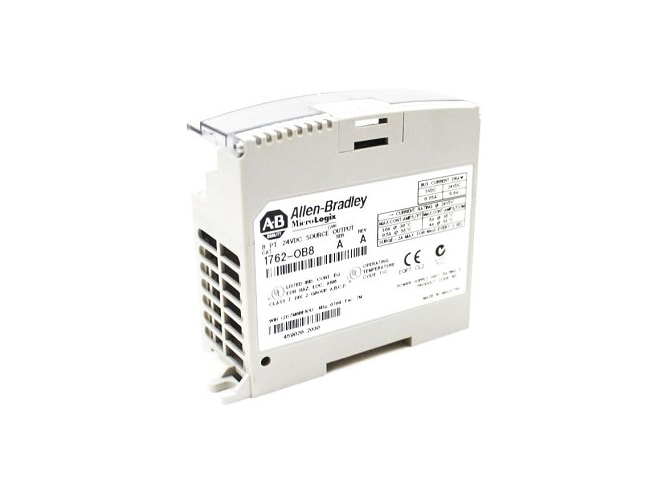

Remanufactured Allen-Bradley 1762-OB8 MicroLogix 1200 Solid-State Digital DC Output Module

8 outputs, AC/DC normally open relay voltage category.

Remanufactured

$298.63
Availability
  • 1 in stock

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks
Part Number
  • 1762-OB8RMN
Manufactured

Features

  • Operating voltage range:
    • 5 to 265VAC
    • 5 to 125VDC
  • 115mA @ 5VDC (0.575W) max. bus current draw
  • Open-style enclosure type
  • Status indicators:
    • 1 green health indicator
    • 4 red error indicators
  • Max. signal delay (resistive load):
    • ON: 0.1ms
    • OFF: 1.0ms
  • 1.0mA max. off-state leakage
  • 1.0mA min. on-state current
  • 1.0VDC max. on-state voltage drop
  • Max. continuous current per point:
    • 0.5A @ 131°F
    • 1.0A @ 86°F
  • Max. continuous current per module:
    • 4.0A @ 131°F
    • 8.0A @ 86°F
  • 6 power supply distance rating

The Allen-Bradley 1762-OB8 MicroLogix 1200 Solid-State Digital DC Output Module is an expansion module for the MicroLogix 1200 controller. The module is capable of resisting a 30G shock and 5G vibration at 500Hz, and it is UL, cUL, and CE certified.
