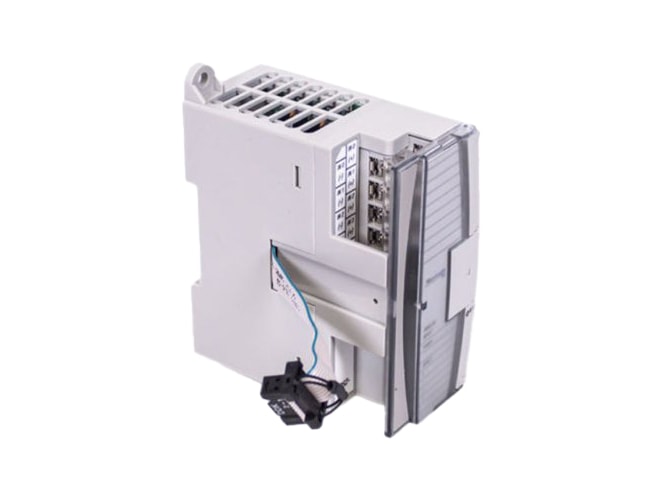

Repair Allen-Bradley 1762-IF4 MicroLogix Analog Input Module

4 differential (bipolar) inputs.

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks

Remanufactured

$635.04
Availability
  • 1 in stock
Part Number
  • 1762-IF4REP
Manufactured

Features

  • Sigma-Delta A/D converter type
  • +/-27V common mode voltage range
  • >55dB @ 50 and 60Hz common mode rejection
  • +/-0.12% non-linearity (in percent full scale)
  • Typical overall accuracy:
    • +/-0.32% full scale @ -4 to 149°F
    • +/-0.24% full scale @ 77°F
  • Input impedance:
    • Voltage terminal: 200K ohms
    • Current terminal: 275K ohms
  • +/-32mA current input protection
  • +/-30V voltage input protection
  • Over or under range or open circuit condition channel diagnostics by bit reporting for analog inputs

The Allen-Bradley 1762-IF4 MicroLogix Analog Input Module is suitable for use in a clean, dry (Pollution degree 2) industrial environment, and in circuits not exceeding Over Voltage Category II (IEC 60664-1). For each module, slot x, words 0 to 3 contain the analog values of the inputs. The module can be configured to use either raw/proportional data or scaled-for-PID data. The module notifies the controller of critical and non-critical errors. The module condition array word 0 contains the error codes that are generated by the module.
