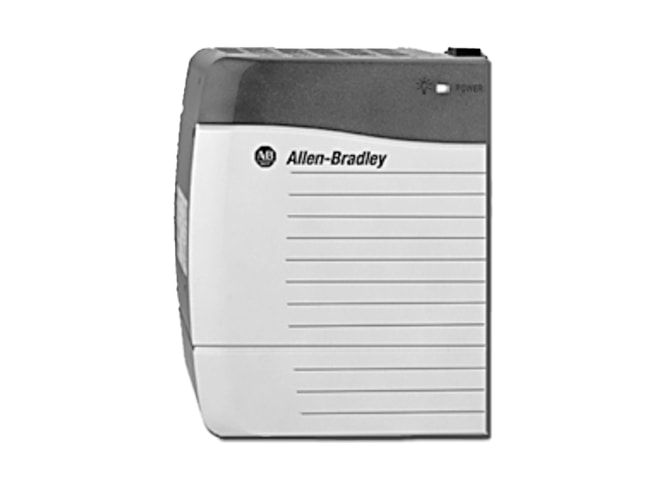

Repair Allen-Bradley 1756-PB72 ControlLogix Standard DC Power Supply

18 to 32VDC input voltage range; 24VDC nominal input voltage.

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks

Remanufactured

$793.80
Availability
  • 1 in stock
Part Number
  • 1756-PB72REP
Manufactured
Product Specs

Features

  • 95W max. input power
  • 75W @ (32 to 140°F) max. output power
  • 30A max. inrush current
  • Hold up time:
    • 35ms @ 18VDC
    • 40ms @ 24VDC
    • 40ms @ 32VDC
  • Current capacity:
    • 1.5A @ 1.2V
    • 4A @ 3.3V
    • 10A @ 5.1V
    • 2.8A @ 24V
  • Isolation voltage:
    • 250V (continuous), reinforced insulation type, power input to backplane
    • Type tested @ 3,500VDC for 60sec
  • Series A, B, and C chassis compatibility

The Allen-Bradley 1756-PB72 ControlLogix Standard DC Power Supply provides built-in overcurrent protection, and is used to provide power to modules along the backplane of a ControlLogix chassis. The power supply should be installed in the leftmost slot of the chassis, directly on the mounting plate, and fixed in position by the provided mounting holes. The ground terminals of the chassis and the power supply must be properly connected, as the power supply module and chassis each contact the mounting plate.
