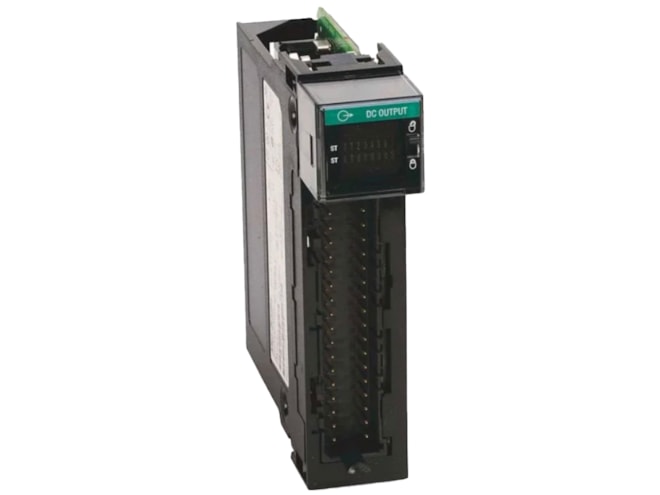

Remanufactured Allen-Bradley 1756-OB16I ControlLogix Isolated Discrete DC Output Module

16 individually isolated outputs.

Remanufactured

$733.32
Availability
  • 1 in stock

Repair

Call for pricing
Availability
  • Usually ships in 2-3 weeks
Part Number
  • 1756-OB16IRMN
Manufactured
Product Specs

Features

  • 2A (DC-13SQ) pilot duty
  • 12/24VDC sink/source voltage category
  • 10 to 30VDC operating voltage range
  • Output delay time:
    • OFF to ON: 1ms max
    • ON to OFF: 2ms max
  • Current draw:
    • 350mA @ 5.1V
    • 2.5mA @ 24V
  • 1.8W total backplane power
  • 3.6W @ 140°F max. power dissipation
  • 12.28 BTU/hr thermal dissipation
  • 0.5mA per point max. off-state leakage current
  • 1.2VDC @ 2A max. on-state voltage drop
  • Max. current per point:
    • 2A @ 86°F
    • 1A @ 140°F (linear derating)
  • Max. current per module:
    • 8A @ 86°F
    • 4A @ 140°F (linear derating)

The Allen-Bradley 1756-OB16I ControlLogix Isolated Discrete DC Output Module includes output channels featuring a configurable safe state position. The module uses various communication formats, including scheduled output data, listen-only rack optimization, rack optimization, listen-only output data, and output data. Hold Last State, On, or Off choices are included for selection of states in Fault or Program per point.
